BACK-UP LAMP - OVAL - LED - MALE PIN - SINGLE DIODE - DUAL SYSTEM

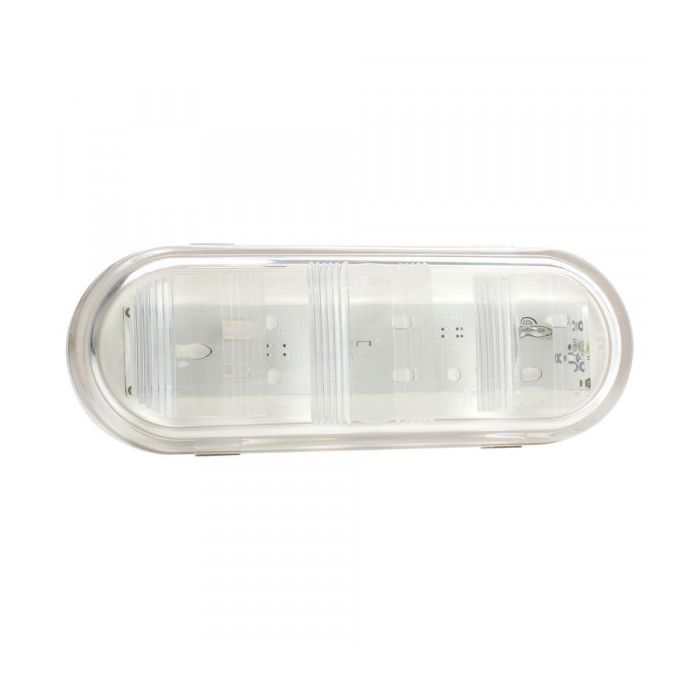

Grote 62051 - SuperNova® NexGen™ Oval Dual-System LED Backup Light, 6" – Clear

Next-Generation Reverse Lighting Technology The Grote 62051 SuperNova® NexGen™ represents the pinnacle of backup lighting performance. This 6-inch oval LED lamp is engineered to provide maximum visibility during reversing maneuvers, significantly increasing safety for heavy-duty trucks, trailers, and specialized equipment. Utilizing advanced NexGen™ LED technology, this light delivers a consistent, high-intensity white beam that far surpasses traditional incandescent lamps in both clarity and reliability.

Unmatched Durability and Hermetic Sealing Designed to withstand the most punishing road conditions, the 62051 features a hermetically sealed lens and housing. This 100% environmental seal protects the internal circuit board from moisture, road salt, and corrosive chemicals, preventing the premature failure common in non-sealed lights. The rugged polycarbonate construction is impact-resistant, ensuring the lamp remains functional even in high-vibration applications.

Efficient Performance and Easy Installation The Grote 62051 is designed for seamless integration into 12V DC systems. With a low current draw of only 0.30A, it provides superior illumination while putting minimal strain on the vehicle's electrical system. This lamp features a standard PL-2 connection (2-pin), making it a direct plug-and-play upgrade for most existing oval backup light configurations. Note: This is a dual-system lamp; two units are required to meet FMVSS 108 legal requirements for backup function.

Key Features:

• SuperNova® NexGen™ LEDs: High-output diodes for superior white light visibility.
• Hermetic Lens-to-Housing Seal: Prevents moisture intrusion and corrosion for a longer service life.
• Energy Efficient: Low 0.30A draw at 12V—significantly lower than incandescent alternatives.
• Impact-Resistant Polycarbonate: Built to survive the rigors of heavy-duty trucking.
• Standard 6" Oval Fit: Compatible with industry-standard grommets and brackets.
• PL-2 Connector: Industry-standard 2-pin interface for fast, secure installation.

Technical Specifications

• Brand: Grote
• Part Number: 62051
• Product Line: SuperNova® NexGen™
• Light Source: LED
• Shape: Oval (6" Class)
• Color: Clear / White
• Material: Polycarbonate Lens & Housing
• Voltage: 12V DC
• Amperage: 0.30A
• Connection Type: PL-2 (2-Pin)
• Mounting: Grommet or Flange (Sold Separately)
• Standards: FMVSS 108 / SAE R
• VMRS Code: 034-003-074
• Warranty: 10-Year Limited (LEDs)
