BACK-UP LAMP - CLEAR - U.S 45 SERIES - RECTANGULAR

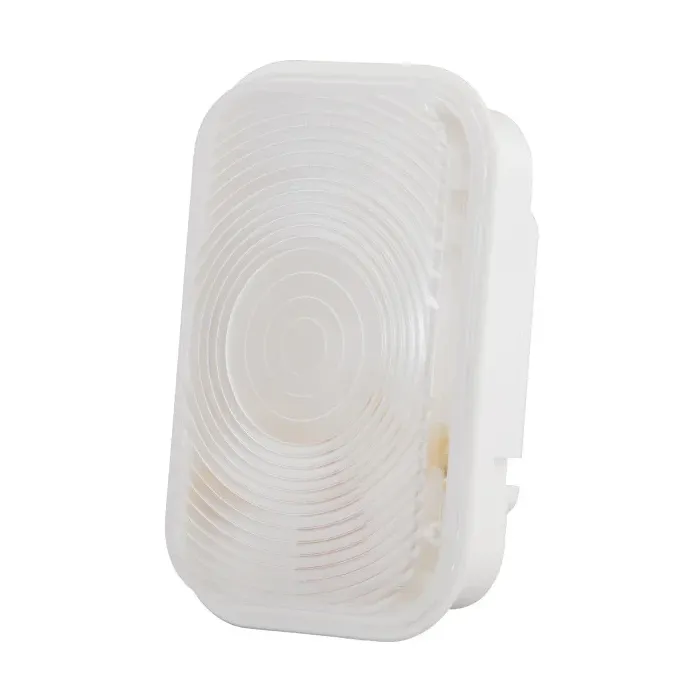

Grote 62381 - 5" Rectangular Dual-System Backup Light, Female Pin – Clear (U.S. 45 Series)

Reliable Reverse Lighting for Heavy-Duty Performance The Grote 62381 is a high-quality, rectangular backup lamp designed for the demanding environments of heavy-duty trucks and trailers. As part of Grote’s dependable U.S. 45 Series, this 5-inch rectangular light provides the essential brightness and durability needed for safe reversing maneuvers. Its wide-beam pattern improves operator visibility and alerts surrounding motorists, making it a staple for commercial fleets and utility vehicles.

Built to Outlast the Elements Engineered for longevity, the 62381 features a tough polycarbonate lens that is sonically welded to a matching polycarbonate housing. This hermetic lens-to-housing seal creates a 100% moisture-proof barrier, protecting the internal components from water intrusion, road salt, and corrosive grime. The impact-resistant construction ensures the lamp remains functional even when subjected to the high vibration and debris common in long-haul applications.

Industry-Standard Fitment and Easy Service Designed for a seamless retrofit, this lamp features a standard female pin termination, allowing it to plug directly into existing 2-wire harnesses. It is optimized for use with Grote’s 94180 grommets or standard bracket mounts. Utilizing a 32 CP #2057 incandescent bulb, it provides reliable, cost-effective performance that is easy to maintain. Note: This is a dual-system lamp; two units are required to satisfy FMVSS 108 backup light requirements.

Key Features:

• Hermetic Seal: Sonic weld prevents moisture intrusion and extends service life.
• Tough Polycarbonate Construction: Both lens and housing are built for maximum impact resistance.
• Standard Female Pin Connection: Compatible with industry-standard pigtails for easy installation.
• U.S. 45 Series Design: Fits standard rectangular mounting footprints.
• High-Visibility Output: Powered by a 32 CP bulb for crisp white light.
• Universal Compatibility: Meets FMVSS 108 (R2) standards when used in pairs.

Technical Specifications

• Brand: Grote
• Part Number: 62381
• Product Line: U.S. 45 Series
• Light Source: Incandescent (Bulb #2057)
• Brightness: 32 CP (Candlepower)
• Color: Clear Lens / White Housing
• Material: Polycarbonate Lens & Housing
• Dimensions: 5 5/16" L x 3 13/32" W x 1 15/16" D
• Voltage/Amperage: 12V DC / 2.1A
• Connection Type: Female Pin
• Mounting Type: Grommet or Bracket (Sold Separately)
• Regulations: FMVSS 108 / SAE R(2)
• VMRS Code: 034-003-074
• Warranty: 1-Year Limited
