FORWARD LIGHTING - CLEAR - WORK LAMP - LED - TRAPEZOID PATTERN

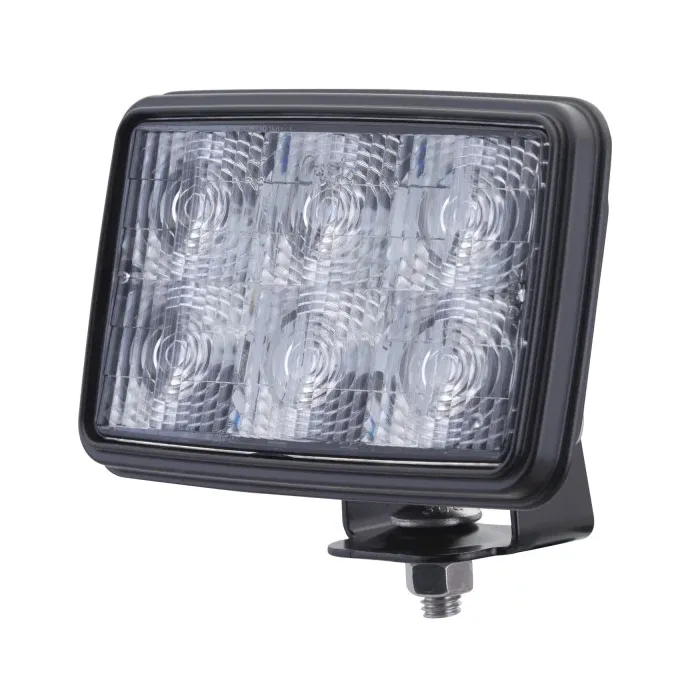

Grote 63621 - Trilliant® Mini LED WhiteLight™ 3" x 5" Work Light, 700 Lumens – Trapezoid Beam

Natural Sunlight Contrast for Precision Work The Grote 63621 Trilliant® Mini is engineered to provide high-performance illumination in a compact 3x5 profile. Utilizing Grote’s advanced WhiteLight™ technology, this LED work lamp produces a color temperature that mimics natural sunlight. This creates a high-contrast viewing environment that reduces eye fatigue and allows operators to distinguish subtle details in the terrain or workspace, significantly optimizing job performance and safety.

Optimized Trapezoid Beam Pattern Unlike standard flood or spot lights, the 63621 features a specialized trapezoid beam pattern. This controlled, raking light is designed to reveal textures and subtle details in the ground while providing excellent lateral (side-to-side) illumination. This makes it a natural choice for off-road applications, agricultural equipment, and construction vehicles where navigating uneven terrain is a constant challenge.

Rugged Industrial Construction Built to outlast traditional incandescent and halogen sealed beams, the 63621 is housed in die-cast aluminum with a black powder-coated finish. The polycarbonate, hard-coated lens is highly resistant to impact, scratching, and UV yellowing. With an IP69K rating, this lamp is completely dust-tight and can withstand high-pressure, high-temperature washdowns. Rated for 50,000 hours of service, it is a maintenance-free solution designed for the long haul.

Key Features:

• 700 Effective Lumens: Brilliant WhiteLight™ output with lower power draw (1.4A).
• Trapezoid Pattern: Delivers a controlled beam perfect for terrain detail and lateral coverage.
• IP69K Rated: Maximum protection against water, chemicals, and high-pressure cleaning.
• Vibration Resistant: Rugged aluminum housing handles heavy-duty road shock and bumps.
• Universal 3x5 Size: A perfect LED upgrade for many legacy incandescent/halogen sealed beams.
• Replaceable Lens: Includes a durable housing with a replaceable rock/chip guard.

Technical Specifications

• Brand: Grote
• Part Number: 63621
• Product Line: Trilliant® Mini
• Light Source: LED
• Effective Lumens: 700
• Beam Pattern: Trapezoid
• Material: Die-Cast Aluminum Housing / Polycarbonate Lens
• Voltage: 12V DC
• Amperage: 1.4A
• Ingress Protection: IP69K (Watertight & Dustproof)
• Mounting Type: Pendant Swivel Mount
• Connection Type: Hardwired / Blunt Cut
• Dimensions: 5.84" L x 3.63" H x 1.77" D
• VMRS Code: 034-006-031
• Warranty: 3-Year Limited
