LED WORK LAMP ASSEMBLY

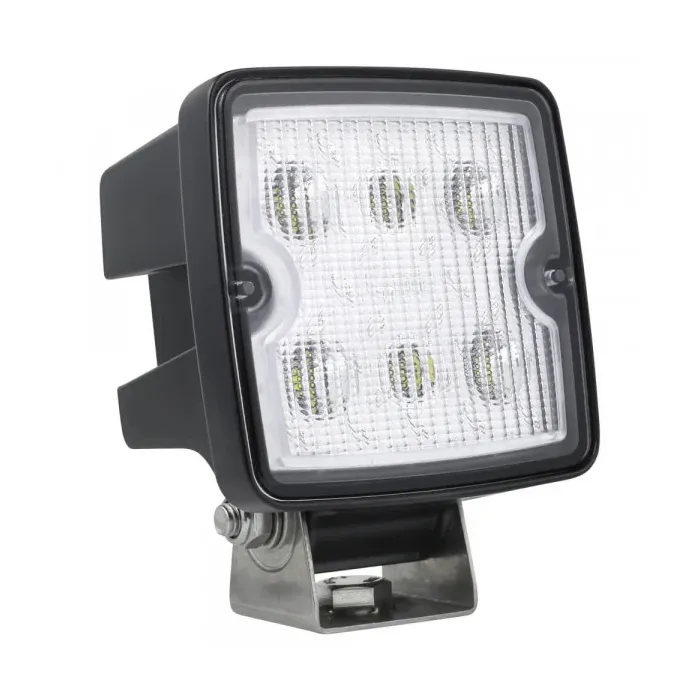

Grote 63W21 Trilliant® Cube LED Work Light – Flood Pattern

Light up the most demanding job sites with the Grote 63W21 Trilliant® Cube LED Work Light. Combining a compact footprint with high-intensity output, this rugged floodlight is engineered for durability in agricultural, construction, and specialized vocational applications. Available at TruckLightParts.com.

The Grote 63W21 Trilliant® Cube is a compact powerhouse designed for operators who need reliable, daylight-quality illumination in tight spaces. Despite its small profile, this LED work light delivers an impressive 1000 lumens, utilizing advanced LED technology to provide a clean, consistent flood pattern that far outlasts traditional halogen lamps.

Built to withstand the rigors of the field, the 63W21 features a die-cast aluminum housing with a corrosion-resistant black powder-coated finish. The high-impact, UV-stabilized polycarbonate lens is designed to resist yellowing and cracking, even under constant exposure to the elements. With an IP69K rating, the Trilliant® Cube is completely dust-tight and can withstand high-pressure, high-temperature washdowns, making it ideal for equipment that operates in mud, dust, and debris.

Key Features:

• High-Intensity Output: 1000 lumens of bright white light in a wide flood pattern for excellent area visibility.
• Compact Cube Design: Small form factor allows for versatile mounting on fenders, cabs, or bumpers where space is limited.
• Ultra-Durable Housing: Die-cast aluminum construction provides superior heat dissipation and impact resistance.
• Maximum Environmental Protection: IP69K rated to handle high-pressure cleaning and extreme weather conditions.
• Energy Efficient: Draws significantly less power than halogen equivalents, reducing strain on the vehicle's electrical system.
• Flexible Mounting: Includes a heavy-duty stainless steel mounting bracket and hardware for a secure, adjustable fit.

Specifications:

• Part Number: 63W21
• Light Pattern: Flood
• Lumens: 1000
• Voltage: 12V / 24V (9V-32V range)
• Amperage: 1.4A at 12V
• Material: Die-Cast Aluminum Housing / Polycarbonate Lens
• Ingress Protection: IP69K
• Connection Type: Blunt Cut (Hardwired)
• VMRS Code: 034-006-031
• Warranty: 3-Year Grote Warranty

Need more coverage for your equipment? Check out our full selection of Grote Trilliant® series lights, including the high-output 63E51, right here on TruckLightParts.com!
