SKU
63W61
Manufactures SKU
GROTE 63W61
LED WORK LAMP ASSEMBLY
$164.00
EA

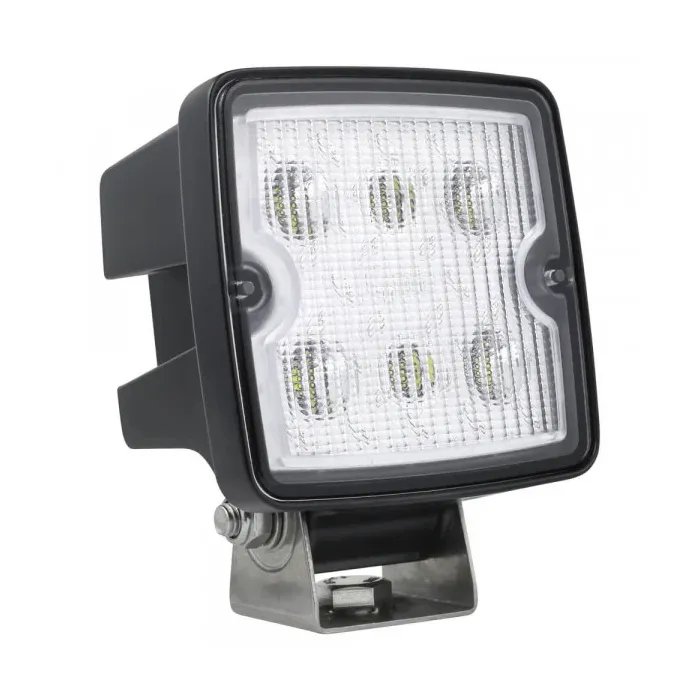

Grote 63W61 - Trilliant® Cube LED Work Light, 3000 Lumens, Close Range – 9-32V, Deutsch Connector
Compact Power with High-Output Performance The Grote 63W61 Trilliant® Cube is a heavy-duty LED work lamp that packs massive power into a small, versatile footprint. Delivering a staggering 3000 raw lumens, this cube light is designed with a high lumen-per-watt rating, providing high-quality illumination that fits where larger, bulkier lights simply won't. Whether you’re working in mining, construction, or off-road environments, the Trilliant® Cube outperforms lights twice its size and weight.
Advanced Optics for Close-Range Precision The 63W61 features a specialized Close Range beam pattern, making it the ultimate choice for near-field task lighting. Utilizing Grote’s WhiteLight™ technology, the premium LEDs produce a natural, sunlight-like contrast (5700K) that reduces eye fatigue and operator stress during long shifts. Sophisticated reflector optics ensure that more light is directed onto the task at hand rather than being wasted in the periphery.
Built to Survive the Elements Designed for the toughest environmental conditions, this work light features a die-cast aluminum housing and a hardened polycarbonate lens that resists scratching and UV fading. It is IP6K9K and IPX7 rated, meaning it is completely dust-tight and watertight even under high-pressure steam cleaning. The rugged internal circuitry is protected from voltage spikes and electromagnetic interference (EMC), ensuring electronically quiet operation that won't interfere with your radio signals.
Key Features:
Compact Power with High-Output Performance The Grote 63W61 Trilliant® Cube is a heavy-duty LED work lamp that packs massive power into a small, versatile footprint. Delivering a staggering 3000 raw lumens, this cube light is designed with a high lumen-per-watt rating, providing high-quality illumination that fits where larger, bulkier lights simply won't. Whether you’re working in mining, construction, or off-road environments, the Trilliant® Cube outperforms lights twice its size and weight.
Advanced Optics for Close-Range Precision The 63W61 features a specialized Close Range beam pattern, making it the ultimate choice for near-field task lighting. Utilizing Grote’s WhiteLight™ technology, the premium LEDs produce a natural, sunlight-like contrast (5700K) that reduces eye fatigue and operator stress during long shifts. Sophisticated reflector optics ensure that more light is directed onto the task at hand rather than being wasted in the periphery.
Built to Survive the Elements Designed for the toughest environmental conditions, this work light features a die-cast aluminum housing and a hardened polycarbonate lens that resists scratching and UV fading. It is IP6K9K and IPX7 rated, meaning it is completely dust-tight and watertight even under high-pressure steam cleaning. The rugged internal circuitry is protected from voltage spikes and electromagnetic interference (EMC), ensuring electronically quiet operation that won't interfere with your radio signals.
Key Features:
- 3000 Raw Lumens: High-intensity output from a highly efficient circuit board (68 lumens/watt).
- Close Range Pattern: Ideal for broad illumination of work areas near the vehicle.
- Bi-Voltage Compatibility: Operates on 9-32V systems, perfect for 12V and 24V applications.
- Deutsch Connection: Features a secure, industry-standard Deutsch connector (pigtail not included).
- Thermal Management: Includes transient protection and heat management for enhanced LED life.
- Hardened Lens: Designed to prevent sun-fading and surface scratches in abrasive environments.
- Brand: Grote
- Part Number: 63W61
- Product Line: Trilliant® Cube
- Light Source: LED
- Lumen Output: 3000 Raw Lumens
- Beam Pattern: Close Range
- Voltage: 9V–32V DC
- Amperage: 2.6A at 14V / 1.3A at 28V
- Color Temperature: 5700K
- Housing Material: Die-Cast Aluminum
- Lens Material: Hardened Polycarbonate
- Ingress Protection: IP6K9K / IPX7
- Mounting Type: Pendant / Pedestal Mount
- Connection: Deutsch (2-Pin)
- VMRS Code: 034-006-031
- Warranty: 3-Year Limited
Shipping Weight (lbs)
1.830000
Total Height
3.25
Total Width
4.75
