SKU
63Z71
Manufactures SKU
GROTE 63Z71
LED WORK LAMP ASSEMBLY
$315.12
EA

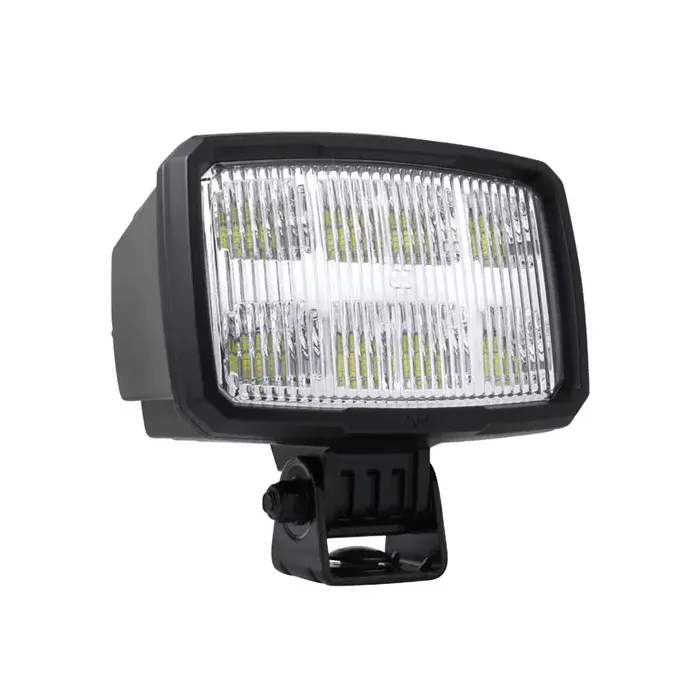

Grote 63Z71 Trilliant® LMX LED Work Light – High-Output Flood Pattern
Maximize your visibility in the most extreme working conditions with the Grote 63Z71 Trilliant® LMX LED Work Light. Delivering massive light output in a rugged, flood-pattern beam, this premium lighting solution is designed for heavy-duty mining, construction, and agricultural equipment.
The Grote 63Z71 is a powerhouse in the Trilliant® LMX family, engineered to turn night into day. Producing an incredible 6000 lumens, this LED work light provides the high-intensity illumination required for large-scale job sites and heavy machinery operations. The specialized flood pattern ensures a broad, even spread of light, eliminating dark spots and improving overall site safety and operator efficiency.
Designed to outlast and outperform, the 63Z71 is built with a die-cast aluminum housing and a high-impact, UV-stabilized polycarbonate lens. It features Grote's advanced thermal management system, which protects the LEDs from overheating, ensuring consistent brightness even during extended use. With an IP69K rating, the LMX is completely dust-tight and can withstand high-pressure, high-temperature washdowns, making it the ultimate choice for environments where mud, vibration, and extreme weather are the norm.
Key Features:
Maximize your visibility in the most extreme working conditions with the Grote 63Z71 Trilliant® LMX LED Work Light. Delivering massive light output in a rugged, flood-pattern beam, this premium lighting solution is designed for heavy-duty mining, construction, and agricultural equipment.
The Grote 63Z71 is a powerhouse in the Trilliant® LMX family, engineered to turn night into day. Producing an incredible 6000 lumens, this LED work light provides the high-intensity illumination required for large-scale job sites and heavy machinery operations. The specialized flood pattern ensures a broad, even spread of light, eliminating dark spots and improving overall site safety and operator efficiency.
Designed to outlast and outperform, the 63Z71 is built with a die-cast aluminum housing and a high-impact, UV-stabilized polycarbonate lens. It features Grote's advanced thermal management system, which protects the LEDs from overheating, ensuring consistent brightness even during extended use. With an IP69K rating, the LMX is completely dust-tight and can withstand high-pressure, high-temperature washdowns, making it the ultimate choice for environments where mud, vibration, and extreme weather are the norm.
Key Features:
- Extreme Lumen Output: Delivers 6000 lumens of daylight-quality white light for maximum area coverage.
- Ruggedized Construction: Die-cast aluminum housing with a black powder-coated finish for superior corrosion and impact resistance.
- Advanced Flood Pattern: Provides a wide, consistent beam ideal for illuminating large work areas and equipment perimeters.
- IP69K Waterproof Rating: Highest level of protection against dust and high-pressure water ingress.
- Superior Longevity: Solid-state LED design resists heavy vibration and shock that typically cause halogen lamps to fail.
- Versatile Voltage: Compatible with 12V and 24V systems (9V-32V operating range) for use across diverse fleets.
- Part Number: 63Z71
- Light Pattern: Flood
- Lumens: 6000
- Voltage: 12V / 24V
- Amperage: 5.4A at 12V / 2.7A at 24V
- Material: Die-Cast Aluminum / Polycarbonate Lens
- Ingress Protection: IP69K
- Mounting: Heavy-Duty Stainless Steel Bracket (Included)
- Connection Type: Deutsch DT Connector (Integrated)
- VMRS Code: 034-006-031
- Warranty: 3-Year Grote Warranty
Shipping Weight (lbs)
1.000000
Total Height
1
Total Width
1
