FORWARD LIGHTING - 10IN - CLEAR - LED BAR LAMP

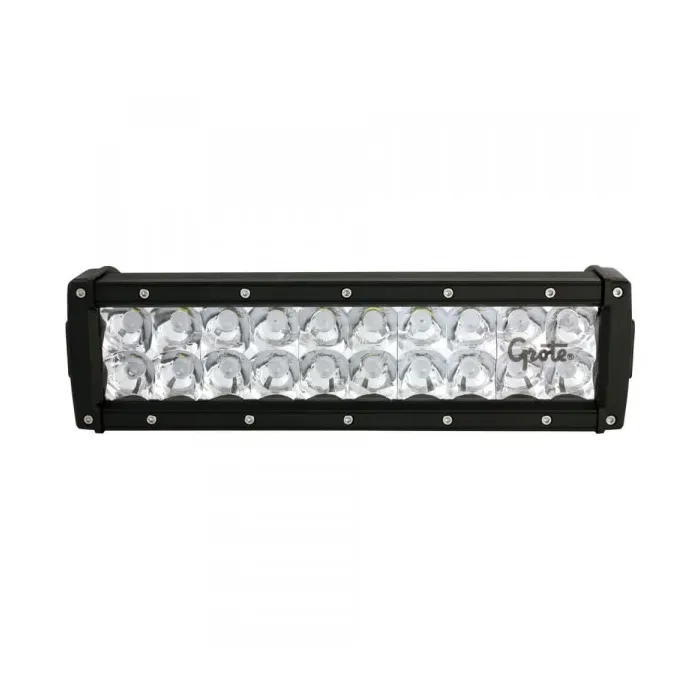

Grote 64J11 - 10" Trilliant® LED Off-Road Light Bar, 5400 Raw Lumens – Combination Flood/Spot Beam

Extreme Visibility for the Trail and the Job Site The Grote 64J11 is a high-performance 10-inch LED light bar engineered to turn night into day. Whether you’re navigating rugged off-road trails or lighting up a remote construction site, this light bar provides the clarity you need. Delivering 5400 raw lumens (2700 effective), the 64J11 utilizes advanced LED technology to produce a daylight-like beam that is significantly easier on your vehicle's electrical system than traditional halogen or HID lamps.

Versatile Combination Beam Pattern Equipped with a Combination Flood/Spot pattern, this light bar offers the best of both worlds. The precision-engineered optics cast a wide floodlight for peripheral visibility while simultaneously projecting a concentrated spot beam deep into the distance. This "Far Flood" characteristic ensures you have a comprehensive view of your surroundings, mimicking natural sunlight to help you identify hazards long before you reach them.

Rugged Construction and Easy Installation Built to withstand extreme thermal stress and mechanical vibration, the 64J11 features a die-cast aluminum housing with a black anodic coating and a hard-coated, UV-protected polycarbonate lens. Rated at IP69K, it is completely waterproof and dustproof—ready for high-pressure washdowns and the harshest weather. For maximum mounting flexibility, the kit includes both side-mount and pedestal-mount brackets, along with a complete wiring harness for a hassle-free setup.

Key Features:

• 5400 Raw Lumens: Exceptional brightness for maximum forward and peripheral visibility.
• Combination Beam: Optimized blend of flood and spot patterns for total scene coverage.
• IP69K Rated: The highest standard of protection against water, dust, and high-pressure steam.
• Bi-Voltage (12V/24V): Works seamlessly with 9V–33V electrical systems.
• Flexible Mounting: Includes side and center (pedestal) brackets for universal installation.
• Efficient Performance: Runs cooler and uses less power than HID or halogen alternatives.

Technical Specifications

• Brand: Grote
• Part Number: 64J11
• Product Line: Trilliant® Off-Road
• Light Source: LED
• Brightness: 5400 Raw / 2700 Effective Lumens
• Beam Pattern: Combination (Flood & Spot)
• Voltage: 12V / 24V DC (9V–33V Range)
• Amperage: 3.2A @ 12V
• Housing Material: Die-Cast Aluminum (Black Anodized)
• Lens Material: Hard-Coated Polycarbonate
• Ingress Protection: IP67 / IP69K
• Connection Type: DT Connector (Harness Included)
• Dimensions: 10" Length (Approx. 12" with Brackets)
• VMRS Code: 034-006-031
• Warranty: 1-Year Limited
