SKU
64J21
Manufactures SKU
GROTE 64J21
FORWARD LIGHTING - 20IN - CLEAR - LED BAR LAMP
$260.48
EA

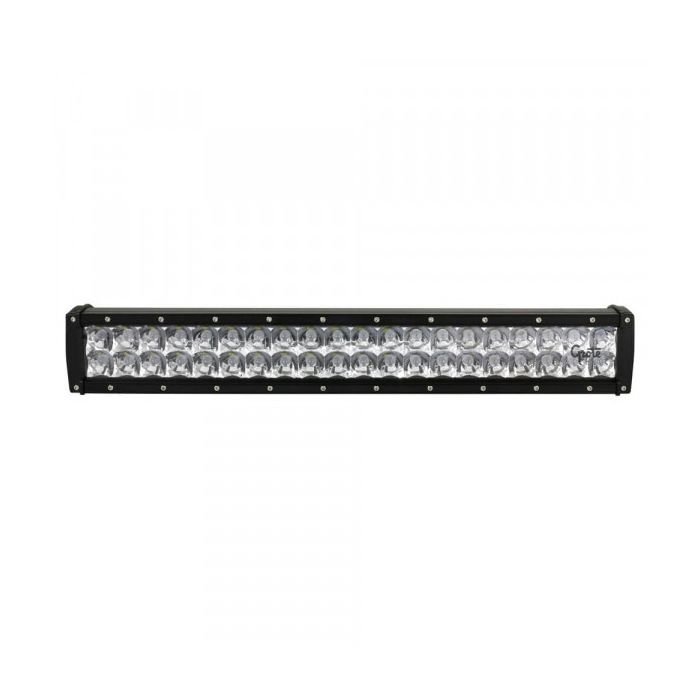

Grote 64J21 - 20" Trilliant® LED Off-Road Light Bar, 10,800 Raw Lumens – Combination Flood/Spot Beam
Double the Intensity for Professional Off-Road Performance The Grote 64J21 is a high-output, 20-inch LED light bar engineered to dominate the darkness on the trail or the job site. Delivering a massive 10,800 raw lumens (5,400 effective), this dual-row light bar provides twice the illumination of standard 10-inch models, making it the ideal choice for front bumper, grille, or roof-mount applications. Whether you’re navigating rugged off-road terrain or lighting up a remote rescue operation, the 64J21 offers superior clarity that mimics natural sunlight.
Superior Optics: Combination Flood & Spot Pattern Equipped with a re-engineered Combination Beam pattern, the 64J21 provides a seamless blend of near-field and long-range visibility. The high-precision flood optics cast a wide "Far Flood" beam to illuminate the periphery, while the central spot optics project a powerful beam deep into the distance. This sunlight-accurate color temperature reduces eye fatigue and ensures you identify hazards long before they become an issue.
Built to Outlast the Elements Crafted for hardcore industrial and off-road use, the 64J21 features a robust extruded aluminum housing with a black anodic coating and a hard-coated, UV-resistant polycarbonate lens. Rated with an IP69K ingress protection, it is completely waterproof and dustproof—capable of withstanding high-pressure steam cleaning and extreme temperatures from -40°C to +80°C. Its advanced circuitry is more efficient than legacy HID or halogen systems, running cooler and drawing less power (6.6A @ 12V) for the same high-intensity output.
Key Features:
Double the Intensity for Professional Off-Road Performance The Grote 64J21 is a high-output, 20-inch LED light bar engineered to dominate the darkness on the trail or the job site. Delivering a massive 10,800 raw lumens (5,400 effective), this dual-row light bar provides twice the illumination of standard 10-inch models, making it the ideal choice for front bumper, grille, or roof-mount applications. Whether you’re navigating rugged off-road terrain or lighting up a remote rescue operation, the 64J21 offers superior clarity that mimics natural sunlight.
Superior Optics: Combination Flood & Spot Pattern Equipped with a re-engineered Combination Beam pattern, the 64J21 provides a seamless blend of near-field and long-range visibility. The high-precision flood optics cast a wide "Far Flood" beam to illuminate the periphery, while the central spot optics project a powerful beam deep into the distance. This sunlight-accurate color temperature reduces eye fatigue and ensures you identify hazards long before they become an issue.
Built to Outlast the Elements Crafted for hardcore industrial and off-road use, the 64J21 features a robust extruded aluminum housing with a black anodic coating and a hard-coated, UV-resistant polycarbonate lens. Rated with an IP69K ingress protection, it is completely waterproof and dustproof—capable of withstanding high-pressure steam cleaning and extreme temperatures from -40°C to +80°C. Its advanced circuitry is more efficient than legacy HID or halogen systems, running cooler and drawing less power (6.6A @ 12V) for the same high-intensity output.
Key Features:
- 10,800 Raw Lumens: Exceptional brightness for maximum forward and peripheral visibility.
- Combo Beam Pattern: Strategic mix of flood and spot optics for total scene coverage.
- IP69K & IP67 Rated: Maximum protection against water, dust, and high-pressure washdowns.
- Flexible Mounting: Includes both side-mount and pedestal-mount (center) brackets.
- Bi-Voltage (12V/24V): Operates on 10V–30V DC systems for universal vehicle compatibility.
- Complete Kit: Includes a DT-style mating harness and all necessary mounting hardware.
- Brand: Grote
- Part Number: 64J21
- Product Line: Trilliant® Off-Road
- Light Source: LED (40 High-Intensity Diodes)
- Brightness: 10,800 Raw / 5,416 Effective Lumens
- Beam Pattern: Combination (Flood/Spot)
- Voltage: 12V / 24V DC (10V–30V Range)
- Amperage: 6.6A @ 12V / 3.3A @ 24V
- Housing Material: Anodized Extruded Aluminum (Black)
- Lens Material: Hard-Coated Polycarbonate (UV Resistant)
- Ingress Protection: IP67, IP68, IP69K
- Connection: DT Deutsch Connector (Harness Included)
- Dimensions: 20" Bar Length (Approx. 22" Overall)
- VMRS Code: 034-006-031
- Warranty: 1-Year Limited
Lens Color
Clear
Shipping Weight (lbs)
11.950000
Total Height
5.5
Total Width
7.5
