SKU
64M11-5
Manufactures SKU
GROTE 64M11-5
DOME/INTERIOR - CLEAR - LED - RADIUS LIGHT - INCLUDES SPACER AND GASKET FOR SURFACE MOUNTING
$150.07
EA
Grote 64M11-5 - LED Radius Task Light, 1200 Lumens, Wide Flood Beam – 9V-32V, IP69K
Enhanced Safety for Entry and Exit Points The Grote 64M11-5 LED Radius Light is an essential safety solution designed to illuminate the critical perimeter around vehicle doors and access points. By mounting to a vertical surface above an entrance or exit, this light distributes a powerful wide-flood beam that covers a minimum of 12 feet (4 meters) in three different directions. Whether you're making evening deliveries or performing early morning maintenance, the 64M11-5 helps prevent injuries by revealing ground-level obstructions and providing enough light to read instructions clearly.
Daylight Clarity with Proprietary TIR Optics Equipped with six high-intensity LEDs, this radius light produces 1200 raw lumens (1100 effective) of crisp, white light. Utilizing a specialized TIR (Total Internal Reflection) Lens, the 64M11-5 efficiently manages light distribution, ensuring maximum usable light is directed onto the task rather than being wasted. The daylight-like color temperature mirrors the noon-time sun, providing superior contrast and reducing eye fatigue during long shifts.
Industrial-Strength Durability Built for the most punishing environments, the 64M11-5 features a heavy-duty, die-cast aluminum housing finished with a gray powder coating for maximum corrosion resistance. Its low-profile, contoured design protrudes only 2.5 inches from the vehicle surface, significantly reducing the risk of impact damage from low-hanging branches or equipment. With an IP69K rating, this light is completely dust-tight and can withstand high-pressure, high-temperature washdowns.
Key Features:
Enhanced Safety for Entry and Exit Points The Grote 64M11-5 LED Radius Light is an essential safety solution designed to illuminate the critical perimeter around vehicle doors and access points. By mounting to a vertical surface above an entrance or exit, this light distributes a powerful wide-flood beam that covers a minimum of 12 feet (4 meters) in three different directions. Whether you're making evening deliveries or performing early morning maintenance, the 64M11-5 helps prevent injuries by revealing ground-level obstructions and providing enough light to read instructions clearly.
Daylight Clarity with Proprietary TIR Optics Equipped with six high-intensity LEDs, this radius light produces 1200 raw lumens (1100 effective) of crisp, white light. Utilizing a specialized TIR (Total Internal Reflection) Lens, the 64M11-5 efficiently manages light distribution, ensuring maximum usable light is directed onto the task rather than being wasted. The daylight-like color temperature mirrors the noon-time sun, providing superior contrast and reducing eye fatigue during long shifts.
Industrial-Strength Durability Built for the most punishing environments, the 64M11-5 features a heavy-duty, die-cast aluminum housing finished with a gray powder coating for maximum corrosion resistance. Its low-profile, contoured design protrudes only 2.5 inches from the vehicle surface, significantly reducing the risk of impact damage from low-hanging branches or equipment. With an IP69K rating, this light is completely dust-tight and can withstand high-pressure, high-temperature washdowns.
Key Features:
- 1200 Raw Lumens: High-output LED technology for daylight-like visibility.
- Proprietary TIR Lens: Efficiently distributes light across a broad work area.
- Bi-Voltage System: Operates on both 12V and 24V systems (9V-32V range).
- IP69K Rated: Maximum protection against water, dust, and high-pressure cleaning.

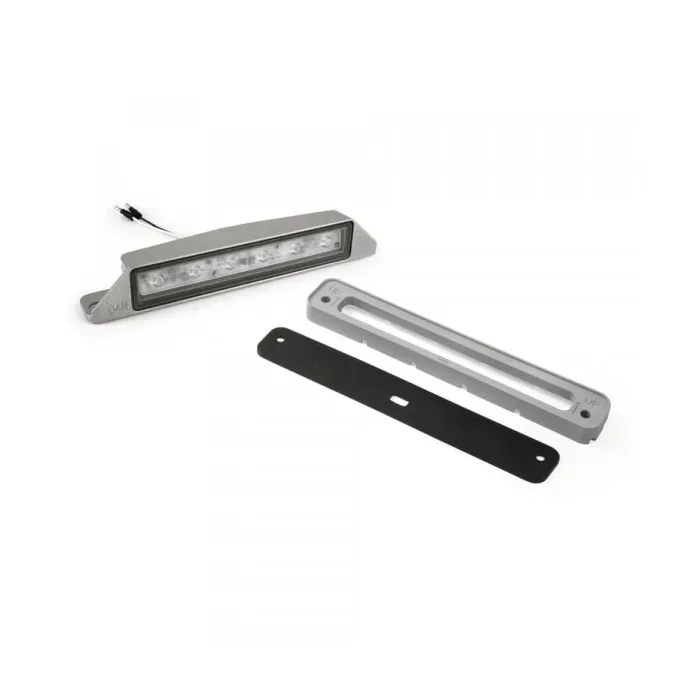

- Complete Mounting Kit: Includes both a spacer (0.642" depth) and a gasket for easy surface mounting.
- Advanced Circuit Protection: Built-in reverse polarity and overvoltage protection to prevent damage from voltage spikes.
- Brand: Grote
- Part Number: 64M11-5
- Product Type: LED Radius Task Light
- Light Source: 6 LEDs
- Lumens: 1200 Raw / 1100 Effective
- Beam Pattern: Wide Flood / Proprietary
- Voltage: 9V–32V DC
- Amperage: 1.5A @ 12V / 0.75A @ 24V
- Material: Die-Cast Aluminum Housing / Polycarbonate Lens
- Ingress Protection: IP69K
- Connection Type: Standard .180" Male Bullet
- Operating Temp: -40°F to +158°F (-40°C to +70°C)
- VMRS Code: 034-006-031
- Warranty: 3-Year Limited
Lens Color
Clear
Shipping Weight (lbs)
1.610000
Total Height
2
Total Width
3
