PIGTAIL - GROUND RETURN - SEALED MARKER LAMP

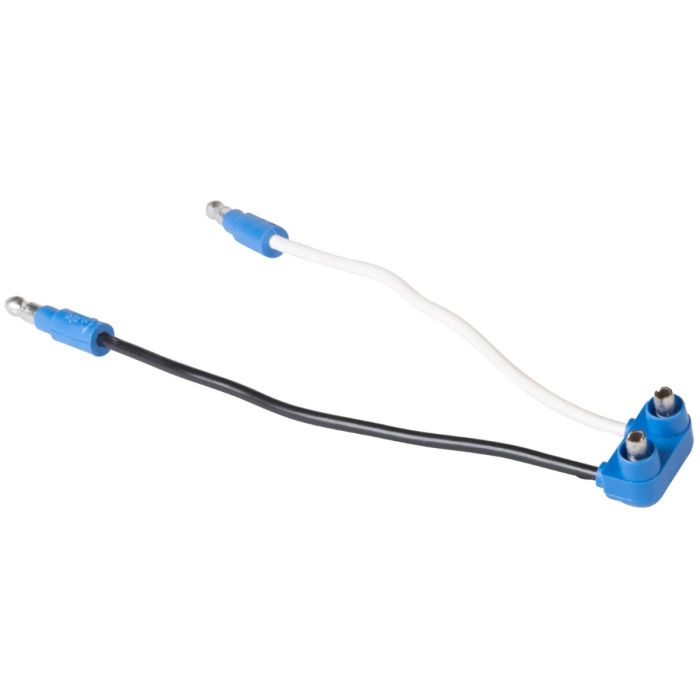

Grote 66801 Sealed Marker Light Pigtail – 6” Lead, Ground Return, 14 GA

Reliable 2-Wire Connectivity for Sealed Marker Lamps The Grote 66801 is a high-performance, 2-wire pigtail designed for professional-grade lighting installations. Specifically engineered for 2" and 2-1/2" round or oval sealed marker lamps, this pigtail is the ideal choice for vehicles requiring a dedicated ground return. By providing both power and ground through the harness, it ensures consistent lighting performance even on trailers with non-metal or painted frames.

Built to Grote’s Ultra-Blue-Seal® Standards Constructed with 14-gauge GPT wire, the 66801 offers superior durability and electrical conductivity compared to standard light-duty pigtails. The single-seal design is factory-molded to lock out moisture, road salt, and contaminants, preventing the corrosion that leads to lighting failure and VMRS downtime.

Key Features & Benefits:

• Ground Return Design: Features a 2-wire configuration (Power and Ground) for a more reliable circuit than chassis-grounded alternatives.
• Heavy-Duty 14 GA Wire: Robust GPT wiring stands up to vibration, abrasion, and environmental stress.
• Factory-Sealed Connection: The molded plug creates a weather-tight seal with the lamp, protecting copper terminals from "wicking."
• Standard PL-10 Connector: Compatible with Grote and other industry-standard 2" and 2-1/2" round, oval, and beehive-style lamps.
• Easy Installation: Includes a Slim-Line .180" Male Bullet and a secondary .180" Male Bullet for a secure, plug-and-play fit into modular harnesses.

Technical Specifications (Grote Verified):

• Part Number: 66801
• Wire Gauge: 14 GA
• Wire Material: GPT
• Length: 6" (152.4 mm)
• Number of Wires: 2 (Ground Return)
• Connection Type: PL-10 to Dual .180" Male Bullets
• Style: Single Seal
• VMRS Code: 034-004-042
