PIGTAIL - 6IN - 3-WIRE PLUG-IN PIGTAIL

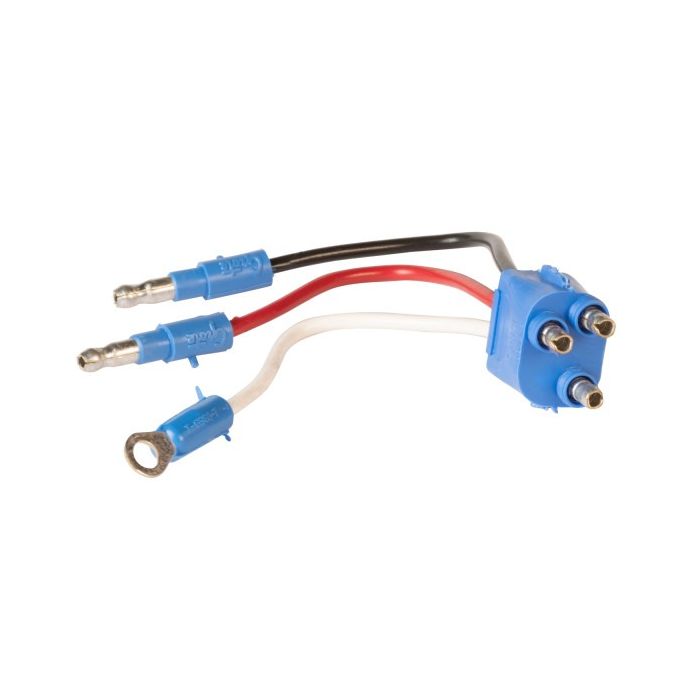

Grote 66812 6” Three-Wire Stop/Tail/Turn Plug-In Pigtail for Female Pin Lights

Reliable Connectivity for Heavy-Duty Stop, Tail, and Turn Lighting The Grote 66812 is a professional-grade 6-inch three-wire pigtail designed to provide a secure, weather-resistant connection for your vehicle's Stop/Tail/Turn (S/T/T) lighting. Specifically engineered for lamps with female pin terminations, this pigtail is an essential component for maintaining the integrity of your trailer’s electrical system.

Built for the Ultra-Blue-Seal® System Featuring factory-molded plugs, the 66812 is fully compatible with Grote’s renowned Ultra-Blue-Seal® trailer wiring system. The precision-molded design prevents moisture and corrosive contaminants from entering the connection, significantly extending the life of your lighting and reducing maintenance downtime.

Key Features & Benefits:

• Dual-Function Capability: Supports full Stop, Tail, and Turn signal functions for multi-purpose lamps.
• Precision Termination: Equipped with a Slim-Line .180" Male Bullet/Ring terminal on one side and a straight Male PL-3 connector on the other.
• Heavy-Duty Construction: Built with 14-gauge GPT wire material for superior conductivity and durability in harsh environments.
• Chassis Ground Design: Ensures a reliable ground connection for consistent light output.
• Universal Fit: Designed to fit industry-standard female pin lamps used on heavy-duty trucks, trailers, and specialized equipment.

Technical Specifications:

• Part Number: 66812
• Length: 6" (1/2')
• Wire Gauge: 14-3 GA
• Connection Type: Slim-Line .180 Male / Male PL-3
• Fits: Female Pin Lamps
• VMRS Code: 034-002-031
• Warranty: Grote 1-Year Warranty
