PIGTAIL - 9IN FEMALE TO MALE 'Y' ADAPTOR

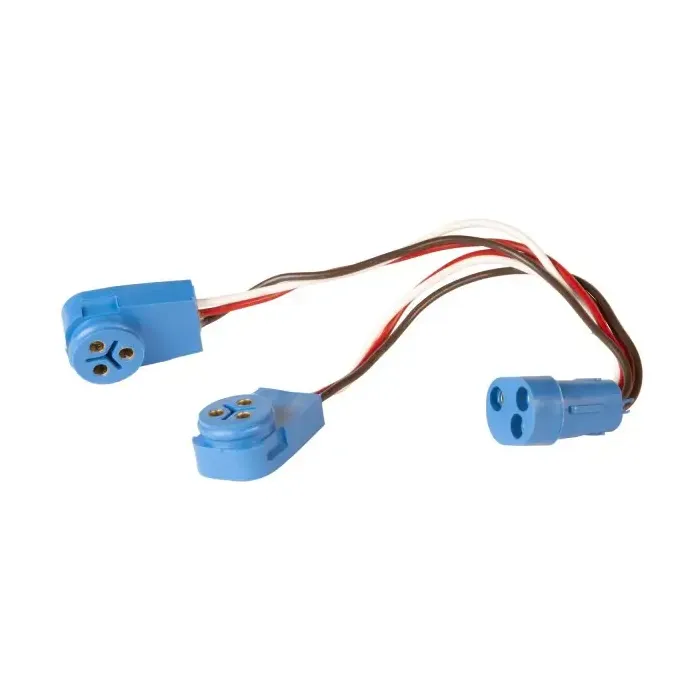

Grote 66814 Two-Light 9" Y-Adapter Pigtail – 90° Plug, Female PL-3 to Male Pin

Reliable Power Split for Multi-Lamp Configurations The Grote 66814 is a heavy-duty 9-inch Y-adapter pigtail designed to simplify the wiring of 6-lamp systems. By providing a secure, high-quality split, this adapter allows you to power multiple Stop/Tail/Turn (S/T/T) lamps from a single source without the need for messy splicing or custom wire fabrication.

Space-Saving 90-Degree Design Engineered for tight installations, the 66814 features a 90-degree male pin plug. This right-angle design reduces the clearance needed behind the lamp housing, preventing wire strain and protecting the connection from damage caused by shifting cargo or road debris.

Maximum Protection Against the Elements Trucking environments are brutal on electrical systems. The Grote 66814 is built with factory-molded terminations that create an airtight seal against moisture, road salt, and dirt. This advanced sealing technology prevents the internal corrosion that leads to flickering lights and electrical failure.

Key Features & Benefits:

• System Versatility: Easily accommodates 6-lamp configurations for heavy-duty trailers.
• Direct Retrofit: Designed to retrofit superior Grote male pin LEDs and lamps into existing systems without new wiring.
• Universal Fit: Compatible with industry-standard 4" round and oval S/T/T lamps.
• 90° Connector: Low-profile 90-degree male pin provides a clean, space-saving fit.
• Durable Construction: Built with 18-gauge GPT wire for long-lasting conductivity and flexibility.

Technical Specifications:

• Part Number: 66814
• Style: Y-Adapter
• Length: 9" (3/4')
• Wire Gauge: 18 GA GPT
• Connector Side One: Female PL-3
• Connector Side Two: 90° Male Pin
• Connector Quantity: 3
• VMRS Code: 034-002-031
• Fits: 4" Round and Oval S/T/T Lamps
• Warranty: Grote 1-Year Limited Warranty
