SKU
66816
Manufactures SKU
GROTE 66816
PIGTAIL - 6IN LONG - 3 WIRE 90 DEGREE MALE PIN
$6.12
EA

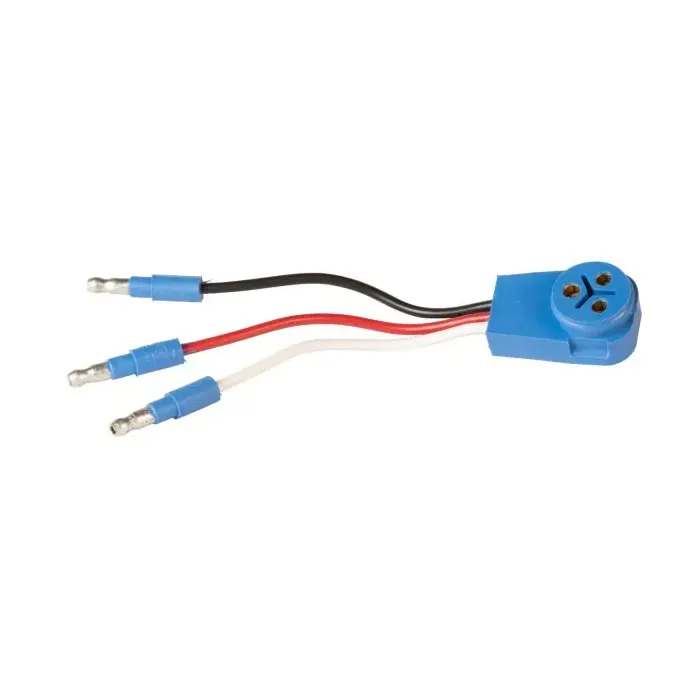

Grote 66816 6” Three-Wire 90º Stop/Tail/Turn Plug-In Pigtail for Male Pin Lights
Low-Profile Solution for Tight Lighting Installations The Grote 66816 is a specialized 6-inch three-wire pigtail designed for Stop/Tail/Turn (S/T/T) lamps with male pin terminations. The standout feature of this pigtail is its 90-degree molded plug, which allows for a secure connection in shallow lamp housings or tight spaces where a straight plug would be prone to wire strain or physical damage.
Built for the Ultra-Blue-Seal® System As part of the Ultra-Blue-Seal® trailer wiring system, the 66816 is engineered to provide a weather-tight barrier. The factory-molded right-angle connector and heavy-duty jacket prevent moisture, road salt, and dirt from reaching the electrical pins. This helps eliminate common maintenance issues like flickering lamps and terminal corrosion.
Professional Grade Construction Using 14-gauge GPT wire, this pigtail ensures maximum current flow and long-term durability. It features a chassis ground design and Slim-Line .180" male terminals, making it a direct-fit, high-performance replacement for standard industry connectors.
Key Features & Benefits:
Low-Profile Solution for Tight Lighting Installations The Grote 66816 is a specialized 6-inch three-wire pigtail designed for Stop/Tail/Turn (S/T/T) lamps with male pin terminations. The standout feature of this pigtail is its 90-degree molded plug, which allows for a secure connection in shallow lamp housings or tight spaces where a straight plug would be prone to wire strain or physical damage.
Built for the Ultra-Blue-Seal® System As part of the Ultra-Blue-Seal® trailer wiring system, the 66816 is engineered to provide a weather-tight barrier. The factory-molded right-angle connector and heavy-duty jacket prevent moisture, road salt, and dirt from reaching the electrical pins. This helps eliminate common maintenance issues like flickering lamps and terminal corrosion.
Professional Grade Construction Using 14-gauge GPT wire, this pigtail ensures maximum current flow and long-term durability. It features a chassis ground design and Slim-Line .180" male terminals, making it a direct-fit, high-performance replacement for standard industry connectors.
Key Features & Benefits:
- 90-Degree Right-Angle Plug: Ideal for installations with limited clearance behind the lamp.
- Male Pin Compatibility: Specifically designed to fit industry-standard male pin S/T/T lights.
- Ultra-Blue-Seal® Technology: Factory-molded plugs provide a superior seal against environmental contaminants.
- Heavy-Duty Wiring: Built with 14-3 GA GPT wire for reliable electrical performance.
- Easy Retrofitting: Simplifies the upgrade to Grote LEDs or incandescent lamps in existing systems.
- Part Number: 66816
- Length: 6" (1/2')
- Wire Gauge: 14-3 GA
- Connection Type: 90° Female PL-3 / Slim-Line .180 Male
- Fits: Male Pin Lamps
- VMRS Code: 034-002-031
- Warranty: Grote 1-Year Limited Warranty
Shipping Weight (lbs)
0.080000
Total Height
0.75
Total Width
1
