SKU
66865
Manufactures SKU
GROTE 66865
PIGTAIL - 10IN - ADAPTER HARNESS - 3-PIN AMP CONNECTOR TO 4-PIN AMP CONNECTOR
$14.59
EA

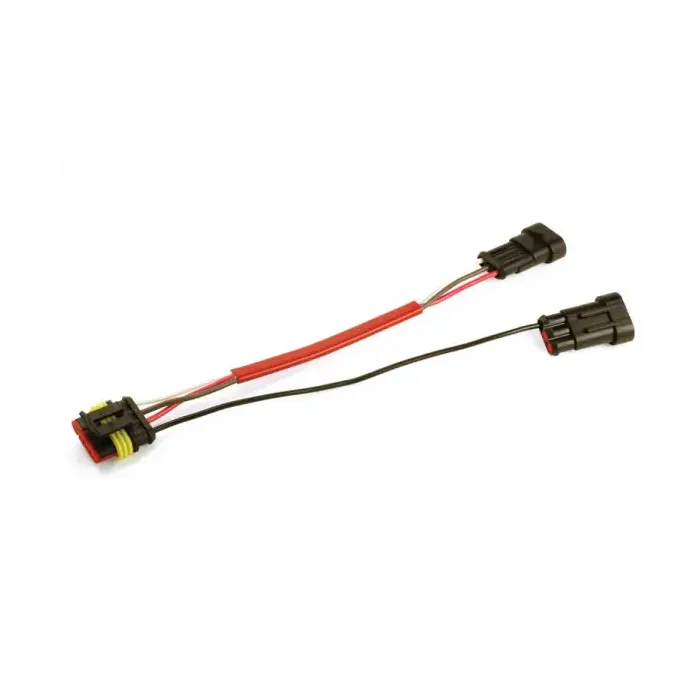

Grote 66865 10” Hard-Shell Y-Adapter Pigtail – 4-Way to 3-Way Connector for 4-in-1 S/T/T Lamps
The Ultimate Y-Adapter for 4-in-1 Lighting Systems The Grote 66865 is a specialized 10-inch Y-adapter pigtail designed specifically for advanced 4-in-1 Stop/Tail/Turn/Backup lamps. This pigtail serves as a critical bridge, featuring a standard 4-pin hard-shell connector that integrates the backup light function seamlessly into your vehicle's existing 3-way hard-shell system.
10-Inch Length for Trouble-Free Installation Listed in technical catalogs as 5/6', the 10-inch total length (with a 9-inch wire lead) provides the ideal amount of slack for clean, professional cable management. This length allows you to position your connectors away from high-vibration areas and ensures there is no tension on the terminals, which prevents premature electrical failure.
Built for Maximum Reliability Constructed with heavy-duty 16-gauge GPT wire, the 66865 is built to handle the higher electrical demands of multi-function lamps. It is fully compatible with Grote and competitive lamps using SuperSeal 1.5 series connectors, providing a weather-tight, "snap-lock" connection that protects against moisture, road salt, and dirt.
Key Features & Benefits:
The Ultimate Y-Adapter for 4-in-1 Lighting Systems The Grote 66865 is a specialized 10-inch Y-adapter pigtail designed specifically for advanced 4-in-1 Stop/Tail/Turn/Backup lamps. This pigtail serves as a critical bridge, featuring a standard 4-pin hard-shell connector that integrates the backup light function seamlessly into your vehicle's existing 3-way hard-shell system.
10-Inch Length for Trouble-Free Installation Listed in technical catalogs as 5/6', the 10-inch total length (with a 9-inch wire lead) provides the ideal amount of slack for clean, professional cable management. This length allows you to position your connectors away from high-vibration areas and ensures there is no tension on the terminals, which prevents premature electrical failure.
Built for Maximum Reliability Constructed with heavy-duty 16-gauge GPT wire, the 66865 is built to handle the higher electrical demands of multi-function lamps. It is fully compatible with Grote and competitive lamps using SuperSeal 1.5 series connectors, providing a weather-tight, "snap-lock" connection that protects against moisture, road salt, and dirt.
Key Features & Benefits:
- Integrated Backup Support: Specifically designed for 4-in-1 S/T/T lamps with built-in backup lights.
- 10" Flexible Reach: Simplifies routing in complex trailer and truck body configurations.
- Hard-Shell SuperSeal Compatibility: Mates securely with industry-standard 1.5 series connectors.
- Premium 16 GA Wire: Thicker gauge GPT wire ensures consistent voltage and durability.
- Blunt-Cut Secondary Lead: Allows for custom hard-wiring of additional functions as needed.
- Part Number: 66865
- Product Type: Y-Adapter Pigtail
- Total Length: 10" (5/6')
- Wire Gauge: 16 GA
- Wire Material: GPT
- Connector Type: 4-Way Hard-Shell to 3-Way Hard-Shell
- Number of Wires: 4
- VMRS Code: 034-002-031
- Warranty: Grote 1-Year Limited Warranty
Shipping Weight (lbs)
0.100000
Total Height
2.2
Total Width
2.2
