SKU
78023
Manufactures SKU
GROTE 78023
EMERGENCY LIGHTING - AMBER - LED MINI LIGHT BAR S.A.E. CLASS I 12 TO 24 VOLT
$258.67
EA

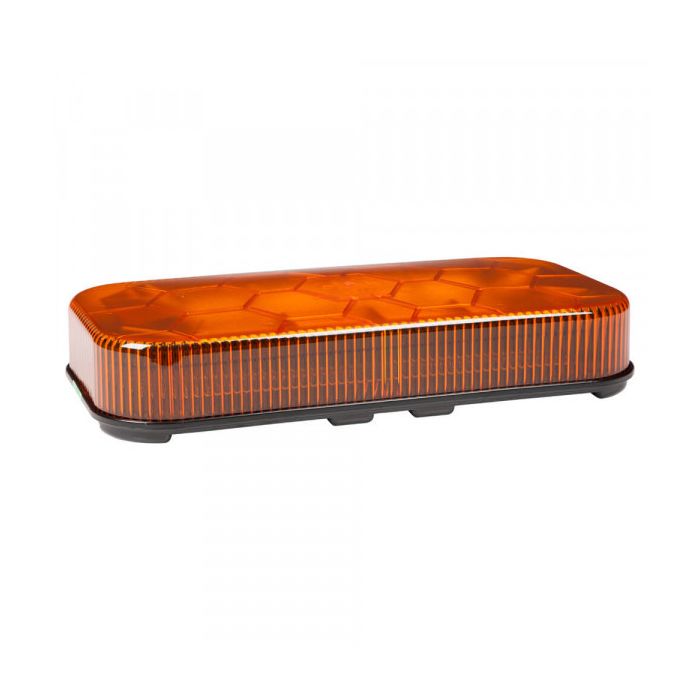

Grote 78023 Amber Class I LED Mini Light Bar – Permanent Mount, 16.5", 12V/24V
Professional-Grade Visibility with SAE Class I Certification The Grote 78023 Amber Class I LED Mini Light Bar is engineered for high-performance safety in demanding professional environments. Certified to SAE J845 Class I standards, this light bar provides the highest intensity levels required for emergency, utility, and construction vehicles. Its high-output LED array ensures 360-degree visibility, providing a superior warning signal that cuts through severe weather and high-traffic visual clutter.
S-Link™ Synchronization & Intelligent Flash Control Maximize your vehicle’s visual impact with Grote’s exclusive S-Link™ System. This advanced technology allows the 78023 to synchronize with up to six other S-Link compatible units, enabling coordinated alternating or simultaneous flash patterns across your entire fleet. Featuring 20 user-selectable flash patterns, you can easily customize your signal via the external pattern select wire to match specific job site requirements or municipal regulations.
Streamlined, Rugged Design for All-Weather Performance Built to survive the "Road Ahead™," the 78023 features a sturdy polycarbonate lens and base that resist impact, UV damage, and harsh chemicals. Its ultra-low profile (only 3.2" tall) not only provides a sleek look but also reduces wind drag and friction, improving vehicle fuel efficiency. With a wide operating temperature range of -30°C to +50°C and a fully sealed, corrosion-resistant design, this mini light bar is ready for everything from freezing winters to scorching summers.
Key Features:
Professional-Grade Visibility with SAE Class I Certification The Grote 78023 Amber Class I LED Mini Light Bar is engineered for high-performance safety in demanding professional environments. Certified to SAE J845 Class I standards, this light bar provides the highest intensity levels required for emergency, utility, and construction vehicles. Its high-output LED array ensures 360-degree visibility, providing a superior warning signal that cuts through severe weather and high-traffic visual clutter.
S-Link™ Synchronization & Intelligent Flash Control Maximize your vehicle’s visual impact with Grote’s exclusive S-Link™ System. This advanced technology allows the 78023 to synchronize with up to six other S-Link compatible units, enabling coordinated alternating or simultaneous flash patterns across your entire fleet. Featuring 20 user-selectable flash patterns, you can easily customize your signal via the external pattern select wire to match specific job site requirements or municipal regulations.
Streamlined, Rugged Design for All-Weather Performance Built to survive the "Road Ahead™," the 78023 features a sturdy polycarbonate lens and base that resist impact, UV damage, and harsh chemicals. Its ultra-low profile (only 3.2" tall) not only provides a sleek look but also reduces wind drag and friction, improving vehicle fuel efficiency. With a wide operating temperature range of -30°C to +50°C and a fully sealed, corrosion-resistant design, this mini light bar is ready for everything from freezing winters to scorching summers.
Key Features:
- SAE J845 Class I Rated: Meets the most stringent intensity standards for emergency and highway use.
- S-Link™ System: Sync capabilities with up to 6 units for integrated, coordinated signaling.
- 20 Selectable Flash Patterns: Quickly cycle through patterns using the external select wire.
- Low-Profile Engineering: Slim 3.2" height minimizes wind resistance and noise.
- Permanent Bolt-On Mount: Secure, rugged installation designed for heavy-duty service vehicles.
- Dual Voltage Compatibility: Operates seamlessly on both 12V and 24V DC systems.
- Part Number: 78023
- Color: Amber (Lens & LED)
- VMRS Code: 034-001-021
- Voltage: 12V / 24V DC
- Amperage: 2.3A
- Mounting Type: Permanent Mount (4-Bolt)
- Standards: SAE J845 Class I
- Dimensions: 16.5" L x 8.4" W x 3.2" H
- Connection: 18 GA Blunt Cut Wires (18" Lead)
- Warranty: 5-Year Manufacturer Warranty
Lens Color
Yellow
Shipping Weight (lbs)
3.550000
Total Height
5.5
Total Width
9.25
