SKU
78025
Manufactures SKU
GROTE 78025
EMERGENCY LIGHTING - BLUE - LED MINI LIGHT BAR S.A.E. CLASS I 12 TO 24 VOLT
$258.67
EA

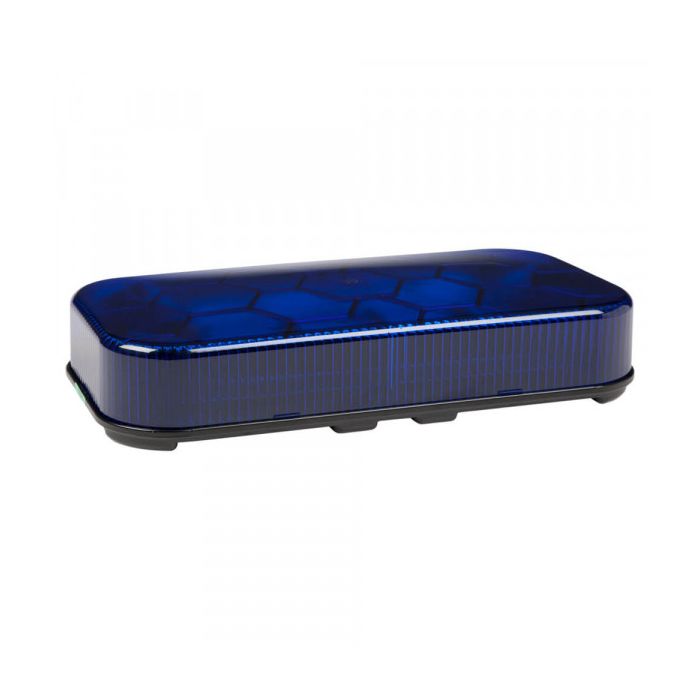

Grote 78025 Blue Class I LED Mini Light Bar – Permanent Mount, 12V/24V Multi-Voltage
Professional-Grade Warning Performance in a Slim Profile The Grote 78025 Blue Class I LED Mini Light Bar is a high-intensity safety solution designed for authorized emergency vehicles and service fleets. Engineered with an ultra-low profile, this light bar stands only 3.2 inches tall, significantly reducing wind drag and friction while providing a sleek, modern look. Certified to SAE J845 Class I standards, it delivers the maximum optical output required to capture the attention of motorists and pedestrians in high-stakes environments.
Advanced S-Link™ Synchronization & Custom Flash Patterns Take control of your vehicle's warning signals with the integrated S-Link™ System. This proprietary technology allows you to synchronize the 78025 with up to six other S-Link compatible units, enabling a coordinated and professional lighting sequence across your entire vehicle. Featuring 20 user-selectable flash patterns via an external pattern select wire, you can easily customize the visual alert to match specific municipal requirements or job site safety protocols.
Rugged Construction for Heavy-Duty Service Built to endure the "Road Ahead™," the Grote 78025 features a durable polycarbonate lens and housing that resists impact, vibration, and harsh weather. It is rated for extreme operating temperatures from -30°C to +50°C (-22°F to 122°F), ensuring reliable performance in any climate. This permanent-mount version includes a secure 4-bolt installation and 18-inch blunt-cut wires for a professional, hardwired connection.
Key Features:
Professional-Grade Warning Performance in a Slim Profile The Grote 78025 Blue Class I LED Mini Light Bar is a high-intensity safety solution designed for authorized emergency vehicles and service fleets. Engineered with an ultra-low profile, this light bar stands only 3.2 inches tall, significantly reducing wind drag and friction while providing a sleek, modern look. Certified to SAE J845 Class I standards, it delivers the maximum optical output required to capture the attention of motorists and pedestrians in high-stakes environments.
Advanced S-Link™ Synchronization & Custom Flash Patterns Take control of your vehicle's warning signals with the integrated S-Link™ System. This proprietary technology allows you to synchronize the 78025 with up to six other S-Link compatible units, enabling a coordinated and professional lighting sequence across your entire vehicle. Featuring 20 user-selectable flash patterns via an external pattern select wire, you can easily customize the visual alert to match specific municipal requirements or job site safety protocols.
Rugged Construction for Heavy-Duty Service Built to endure the "Road Ahead™," the Grote 78025 features a durable polycarbonate lens and housing that resists impact, vibration, and harsh weather. It is rated for extreme operating temperatures from -30°C to +50°C (-22°F to 122°F), ensuring reliable performance in any climate. This permanent-mount version includes a secure 4-bolt installation and 18-inch blunt-cut wires for a professional, hardwired connection.
Key Features:
- SAE J845 Class I Rated: Provides the highest level of light intensity for emergency and highway use.
- S-Link™ System: Synchronize with up to 6 units for integrated, coordinated flash patterns.
- 20 Selectable Flash Patterns: Quickly cycle through patterns using the external select wire.
- Low-Profile Design: 3.2" height minimizes wind resistance and improves vehicle efficiency.
- All-Weather Reliability: Fully sealed, corrosion-resistant design with a wide temperature range.
- Multi-Voltage Compatibility: Works seamlessly on both 12V and 24V DC systems.
- Part Number: 78025
- Color: Blue (Lens & LED)
- VMRS Code: 034-001-021
- Voltage: 12V / 24V DC
- Amperage: 2.3A Max
- Mounting Type: Permanent Mount (4-Bolt)
- Dimensions: 16.5" L x 8.4" W x 3.2" H
- Warranty: 5-Year Manufacturer Warranty
Lens Color
Blue
Shipping Weight (lbs)
3.570000
Total Height
5.5
Total Width
9.5
