SKU
78143
Manufactures SKU
GROTE 78143
EMERGENCY LIGHTING - AMBER - LED 6 DIODE S.A.E. CLASS I SURFACE MOUNT 12 TO 24 VOLT
$75.82
EA

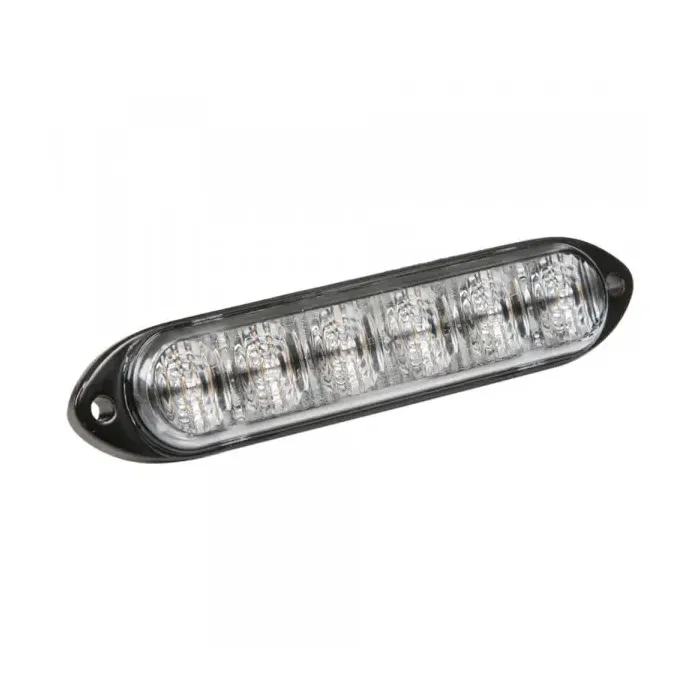

Grote 78143 Amber 6-Diode LED Directional Warning Light – Class I, Ultra-Low Profile, S-Link™ Synchronizable
High-Intensity Warning Power in an Ultra-Low Profile The Grote 78143 Amber LED Directional Light is the professional’s choice for reliable, high-visibility safety signaling. Engineered with 6 high-output diodes and certified to SAE J845/SAE J595 Class I standards, this light provides the maximum light intensity required for emergency, construction, and utility vehicles. Its ultra-low profile design—standing just 0.39" high—allows for a discreet, flush-mount installation that minimizes wind resistance and prevents accidental damage from external obstructions.
Advanced S-Link™ Synchronization Technology Achieve a unified, professional lighting signature with Grote’s proprietary S-Link™ Technology. This advanced system allows you to synchronize the 78143 with up to six other S-Link compatible units. Whether you need simultaneous flashes for high-impact alerts or alternating patterns for a "moving" visual warning, S-Link offers complete control over your fleet's look. With 25 built-in flash patterns and two-phase options, you can tailor your signal to any job site requirement.
Industrial-Grade Durability Built to survive the "Road Ahead™," the 78143 features a robust die-cast aluminum base for superior heat dissipation and a high-impact polycarbonate lens. The modular circuit is completely encapsulated to protect against moisture, dust, and the heavy vibration common in Agriculture, Mining, and Forestry applications. With a wide operating temperature range of -40°C to +55°C, this directional light delivers reliable performance in the world's harshest climates.
Key Features:
High-Intensity Warning Power in an Ultra-Low Profile The Grote 78143 Amber LED Directional Light is the professional’s choice for reliable, high-visibility safety signaling. Engineered with 6 high-output diodes and certified to SAE J845/SAE J595 Class I standards, this light provides the maximum light intensity required for emergency, construction, and utility vehicles. Its ultra-low profile design—standing just 0.39" high—allows for a discreet, flush-mount installation that minimizes wind resistance and prevents accidental damage from external obstructions.
Advanced S-Link™ Synchronization Technology Achieve a unified, professional lighting signature with Grote’s proprietary S-Link™ Technology. This advanced system allows you to synchronize the 78143 with up to six other S-Link compatible units. Whether you need simultaneous flashes for high-impact alerts or alternating patterns for a "moving" visual warning, S-Link offers complete control over your fleet's look. With 25 built-in flash patterns and two-phase options, you can tailor your signal to any job site requirement.
Industrial-Grade Durability Built to survive the "Road Ahead™," the 78143 features a robust die-cast aluminum base for superior heat dissipation and a high-impact polycarbonate lens. The modular circuit is completely encapsulated to protect against moisture, dust, and the heavy vibration common in Agriculture, Mining, and Forestry applications. With a wide operating temperature range of -40°C to +55°C, this directional light delivers reliable performance in the world's harshest climates.
Key Features:
- SAE J845/J595 Class I Rated: The highest brightness standard for professional safety.
- Ultra-Low Profile: Only 0.39" thick for a clean, aerodynamic surface mount.
- S-Link™ Technology: Synchronize up to 6 units for coordinated, professional flash sequences.
- 25 Selectable Flash Patterns: Versatile signaling with 2-phase options and steady-on.
- Heavy-Duty Build: Die-cast aluminum base and impact-resistant clear polycarbonate lens.
- Multi-Voltage (12V/24V): Reliable performance across various vehicle electrical systems.
- Part Number: 78143
- Color: Amber (Yellow)
- VMRS Code: 034-001-021
- Voltage: 12V / 24V DC
- Amperage: 0.55A @ 12V
- Connection: Blunt Cut (7" Wire Lead)
- Dimensions: 4.95" L x 1.00" W x 0.39" H
- Warranty: 5-Year Manufacturer Warranty
Lens Color
Clear
Shipping Weight (lbs)
0.150000
Total Height
1.25
Total Width
1.5
