EMERGENCY LIGHTING - LED TRAFFIC DIRECTOR WITH DUAL LAMP ARROW 12 VOLT

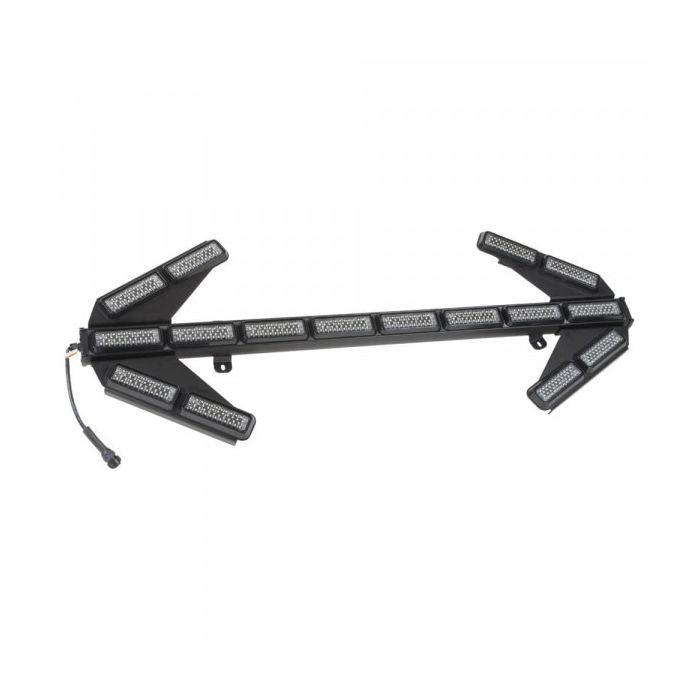

Grote 78270 Large 8-Head LED Traffic Director – Dual Lamp Arrow, Amber, SAE Class I

Maximum-Visibility Traffic Control for High-Speed Roadways The Grote 78270 Large LED Traffic Director is the premier choice for highway construction, large-scale utility projects, and emergency incident management. Measuring nearly 47 inches in length and featuring a unique dual-lamp arrow design, this unit provides an unmistakable directional signal that can be seen from extreme distances. Certified to SAE J595 Class I standards, it delivers the high-intensity amber output required to safely move traffic at highway speeds.

High-Impact Dual-Lamp Arrow Messaging Unlike standard traffic sticks, the 78270 utilizes a dual-lamp configuration at the ends of the bar to create a more prominent, recognizable arrow shape. This "Large with Dual Lamp" design ensures that directional cues (Left, Right, or Center-Out) are immediately understood by approaching motorists, reducing confusion and increasing job-site safety.

Comprehensive Control & Versatile Modes The system includes a tactile, backlit control head that allows operators to easily manage traffic flow from within the vehicle. Choose from multiple professional operating modes:

• Left Arrow: Sequential dual-lamp movement to the left.
• Right Arrow: Sequential dual-lamp movement to the right.
• Center-Out: Directs traffic to both sides simultaneously.
• Hazard Warning: High-visibility alternating flash patterns for general safety.

Industrial-Grade Reliability Built for the "Road Ahead™," the 78270 features a rugged extruded aluminum housing that prevents warping and protects internal components from heavy vibration. The polycarbonate lenses are UV-stabilized and impact-resistant. Designed for the long haul, this unit is fully serviceable; individual LED modules can be replaced without removing the entire bar from the vehicle.

Key Features:

• Dual-Lamp Arrow Design: Enhanced visual clarity for high-speed traffic direction.
• SAE J595 Class I Rated: Professional-grade brightness for maximum safety.
• Rugged Aluminum Build: Lightweight yet extremely durable extruded housing.
• 8-Head Configuration: Large-format bar for maximum visibility on wide vehicles.
• User-Friendly Interface: Includes a dedicated controller and 15-foot wire harness.
• Operating Temp Range: Reliable performance from -30°C to +50°C.

Specifications:

• Part Number: 78270
• Color: Amber
• VMRS Code: 034-001-021
• Voltage: 12V DC
• Amperage: 3.2A
• Length: 46.8 Inches
• Height: 2.3 Inches
• Warranty: 5-Year Manufacturer Warranty
