Hermetic Lens-to-Housing Seal: Keeps moisture, dirt, and environmental debris away from internal components to ensure maximum service life.
-
Narrow Rail Mounting: Compact rectangular design tailored for narrow rail installations and tight spaces.
-
PC Function Rating: Meets PC function legal signaling requirements when mounted at a 45° angle.
-
Double-Bulb Design: Uses two 2 CP bulbs for consistent, high-visibility amber illumination.
-
Secure Electrical Interface: Engineered to accept double-seal UBS pigtail connectors with male pin connection points.
SKU
78393
Manufactures SKU
GROTE 78393

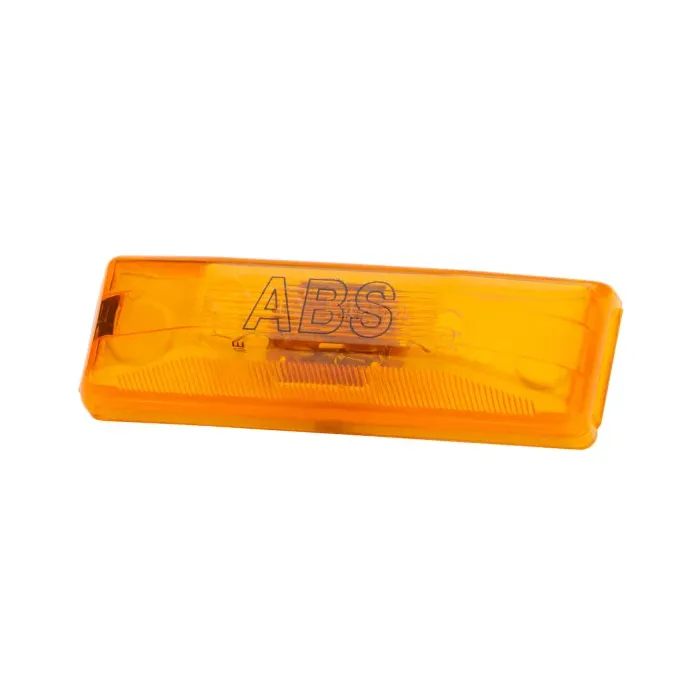

Grote 78393 – Rectangular ABS Clearance Marker Light (Amber, Double Bulb, Narrow Rail Mount)
$5.63
EA
The Grote 78393 Rectangular ABS Clearance Marker Light is engineered for dependable vehicle signaling on narrow mounting surfaces. Designed with a durable amber polycarbonate lens sealed to a white polycarbonate housing, this classic double-bulb lamp provides reliable clearance and side marker functionality for heavy-duty trucks, trailers, and commercial fleets. Its slim, narrow profile makes it an ideal fit for applications with limited mounting space while fully satisfying FMVSS 108 legal lighting regulations.
Key Details
Current Amp
0.66
Housing Material
ABS
Lens Color
AMBER
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lighting Technology
Incandescent
Product Type
Clearance Marker Lamp
Compliance Family
P2, PC (Meets PC when mounted at a 45° angle)
Standards Met
FMVSS 108
VMRS
034-004-021
Warranty
1-Year
Shipping Weight (lbs)
0.050000
Total Height
0.8
Total Width
1.2
