CLEARANCE/MARKER LAMP - YELLOW - SUPERNOVA® LED TURTLEBACK® II - ABS

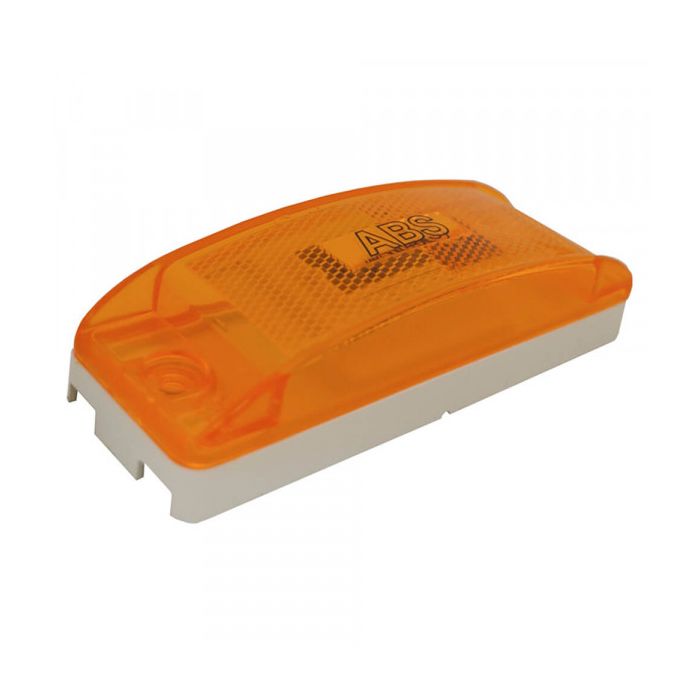

Grote 78403 SuperNova® Sealed Turtleback® II Amber LED PC Marker Light (ABS Housing)

The Grote 78403 SuperNova® Sealed Turtleback® II Amber LED Clearance Marker Light is a premium, rectangular lamp built using the famous Turtleback® II design for maximum durability in heavy-duty environments. This light is PC Rated, ensuring versatile compliance for corner signaling, and features a rugged ABS Housing.

Engineered for exceptional shock absorption and longevity:

• PC Rated Corner Visibility: Fully PC Rated, fulfilling both side marker and clearance functions when mounted at a 45° angle (not for vertical mount).
• Turtleback® II Design: Features a specialized lens and housing design that provides superior shock absorption and protection against impact and road abuse.
• Ultimate Sealing: Features Encapsulant Potting for total circuit-board protection against vibration and moisture, coupled with a Hermetic lens-to-housing seal.
• Corrosion Resistance: Tin-plated, solid-brass terminals are sealed to the housing, eliminating corrosion and electrical failure paths.
• Plug-and-Go® Connection: Connects via a Male Pin terminal, utilizing Grote's UBS double-seal pigtails (pigtail not included) for a superior, moisture-proof seal.
• Efficient Power: Operates reliably on 12V DC with an ultra-low current draw of 0.06A.

Choose the Grote 78403 for a tough, highly visible, and PC-compliant Amber LED marker, backed by an exceptional 10-Year Warranty.

Key Features & Specifications:

• SKU: 78403
• Product Line: SuperNova® Sealed Turtleback® II LED
• Type: PC Rated Clearance/Side Marker (P2, PC)
• Color/Lens: Amber (Yellow)
• Shape: Rectangular (Turtleback II Design)
• Housing: ABS Housing (White/Light)
• Voltage/Amps: 12V DC / 0.06 Amps
• Mounting: Bracket Mount
• Connection: Male Pin
• Durability: Encapsulant Potted, Hermetic Seal, Turtleback® II
• Warranty: 10 Years.
