CLEARANCE/MARKER LAMP - YEL - HI COUNT® LED LAMP - SQUARE-CORNER - SCALLOP LENS

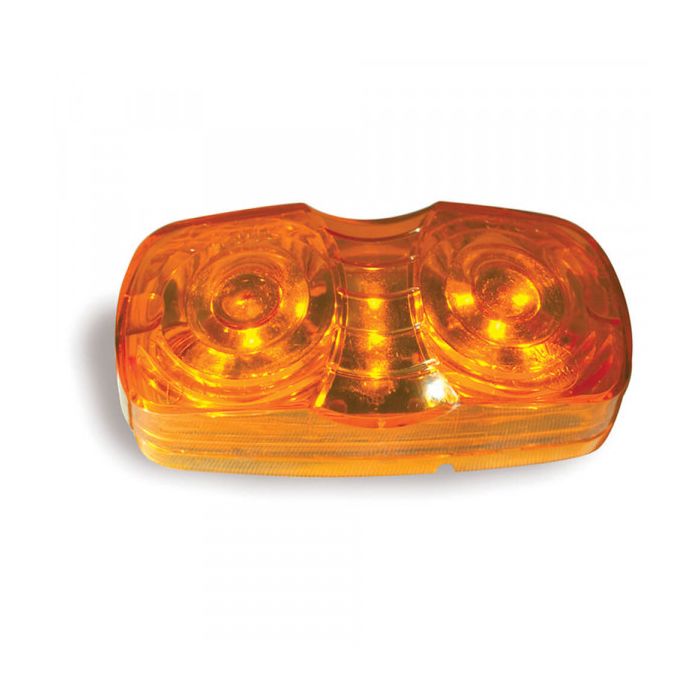

Grote G4603 Hi Count® 4" Amber Square-Corner LED Clearance Marker Light (13-Diode, 12V)

The Grote G4603 Hi Count® 4-inch Amber Square-Corner LED Clearance Marker Light is a robust, high-performance lamp designed for reliable front and side signaling on heavy-duty trucks and trailers. This Square-Corner Rectangular light features 13 powerful Hi Count® Diodes to deliver a bright, P2-compliant Amber LED signal, ensuring enhanced visibility. It operates efficiently on 12V DC with an ultra-low current draw of just 0.15A.

Engineered for extreme durability and reduced maintenance downtime:

• Potted Circuit Protection: The circuit board is fully potted for total protection against severe road vibration, shock, and corrosive elements.
• High-Intensity Output: Utilizes 13 LED Diodes for maximum brightness and extended service life compared to incandescent lamps.
• Field-Replaceable Lens: Features a durable Acrylic lens and a molded snap-ring design, allowing the lens to be replaced in the field without replacing the entire unit, simplifying maintenance.
• Easy Installation: Designed for Bracket Mount installation and wired with a Blunt Cut pigtail for a secure connection to your existing harness.
• P2 Compliant: Meets all FMVSS 108 (P2 Rated) compliance standards.

Choose the Grote G4603 for a durable, long-lasting Amber Rectangular LED light solution, backed by a reliable 2-Year Warranty.

Key Features & Specifications:

• SKU: G4603
• Product Line: Hi Count® LED
• Type: Clearance/Marker Lamp (P2 Rated)
• Diodes: 13-Diode
• Color/Lens: Amber (Yellow)
• Shape/Size: Rectangular / Approx. 4" Wide
• Voltage/Amps: 12V DC / Ultra-low 0.15 Amps
• Durability: Potted Circuit Board, Field-Replaceable Lens
• Mounting: Bracket Mount
• Connection: Blunt Cut (2-Wire)
• Compliance: Meets FMVSS 108 (P2 Rated).
• Warranty: 2 Years.
