SKU
G5092
Manufactures SKU
GROTE G5092
STOP/TURN/TAIL LAMP - RED - 3-STUD - HI COUNT® LED - W/LICENSE WINDOW
$87.89
EA

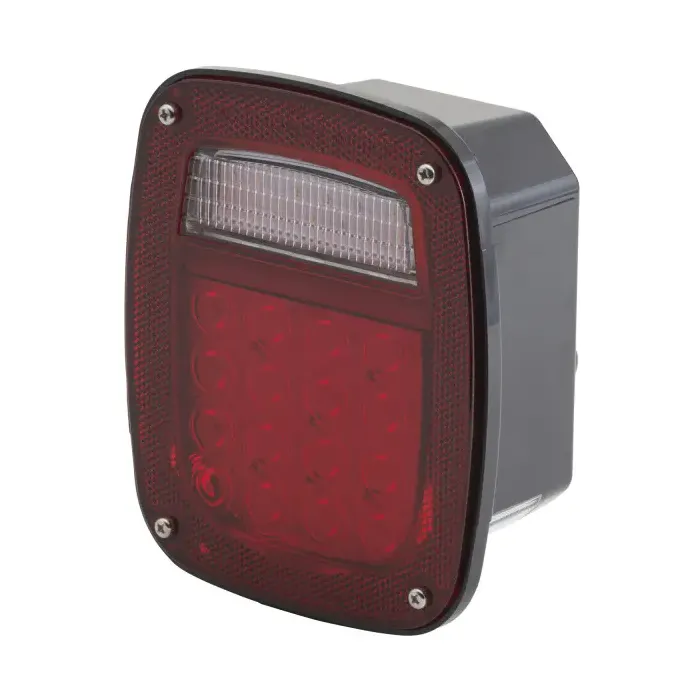

Grote G5092 – Hi Count® Square LED Stop Tail Turn Light (LH w/ License Window, 3-Stud Mount)
Ultimate Visibility and Multi-Function Performance The Grote G5092 is more than just a tail light; it is a comprehensive rear lighting solution. This high-density LED box lamp features an impressive diode count to ensure you are seen in all conditions. With 16 stop/tail/turn diodes, 22 high-intensity backup diodes, and 4 dedicated license plate LEDs, this lamp provides crisp, instant-on illumination that significantly improves safety compared to traditional incandescent bulbs.
Rugged Construction for Punishing Environments Engineered for the long haul, the G5092 features a potted circuit board that fully encapsulates the electronics, protecting them from the heavy vibration and corrosion typical in commercial and off-road use. A specialized gasket between the acrylic lens and polycarbonate housing acts as a primary defense against moisture intrusion, preventing the "green rot" that destroys lesser lights.
Direct Fit and Easy Retrofit Installation is seamless thanks to the 3-stud mounting design, which incorporates the ground function directly into the hardware. This lamp is a direct replacement for many heavy-duty trailer applications and is a popular retrofit for Jeep® Wrangler® models (through 2006). The internal circuit board is designed to be compatible with existing flasher technology, minimizing the need for complex rewiring or resistors.
Product Features & Benefits:
Ultimate Visibility and Multi-Function Performance The Grote G5092 is more than just a tail light; it is a comprehensive rear lighting solution. This high-density LED box lamp features an impressive diode count to ensure you are seen in all conditions. With 16 stop/tail/turn diodes, 22 high-intensity backup diodes, and 4 dedicated license plate LEDs, this lamp provides crisp, instant-on illumination that significantly improves safety compared to traditional incandescent bulbs.
Rugged Construction for Punishing Environments Engineered for the long haul, the G5092 features a potted circuit board that fully encapsulates the electronics, protecting them from the heavy vibration and corrosion typical in commercial and off-road use. A specialized gasket between the acrylic lens and polycarbonate housing acts as a primary defense against moisture intrusion, preventing the "green rot" that destroys lesser lights.
Direct Fit and Easy Retrofit Installation is seamless thanks to the 3-stud mounting design, which incorporates the ground function directly into the hardware. This lamp is a direct replacement for many heavy-duty trailer applications and is a popular retrofit for Jeep® Wrangler® models (through 2006). The internal circuit board is designed to be compatible with existing flasher technology, minimizing the need for complex rewiring or resistors.
Product Features & Benefits:
- Multi-Function LED Array: 16 STT diodes, 22 backup diodes, and 4 license diodes.
- Integrated License Window: Provides legal downward illumination for plates (LH side).
- Potted Electronics: Superior protection against vibration, moisture, and road salt.
- Direct Jeep® Retrofit: Fits Jeep® Wrangler® models up to 2006 with ease.
- Reflex Reflector included: Built-in reflector meets safety standards even when power is off.
- 3-Stud Mounting: Durable mount with integrated ground for a secure electrical connection.
- Brand: Grote Industries
- Part Number: G5092
- Lens Color: Red / Clear (License & Backup)
- Voltage: 12V DC
- Amperage: .12A - .34A
- Mounting: 3-Stud Mount
- Connection: Blunt Cut Wires
- VMRS Code: 034-002-022
- Warranty: 2 Years
Lens Color
Red
Shipping Weight (lbs)
1.200000
Total Height
7
Total Width
5.13
