SKU
G5530
Manufactures SKU
GROTE G5530
STOP/TURN/TAIL LAMP - RED/YELLOW - HI COUNT® LED - 4IN SQUARE PEDESTAL LAMP - DRIVER SIDE
$72.64
EA

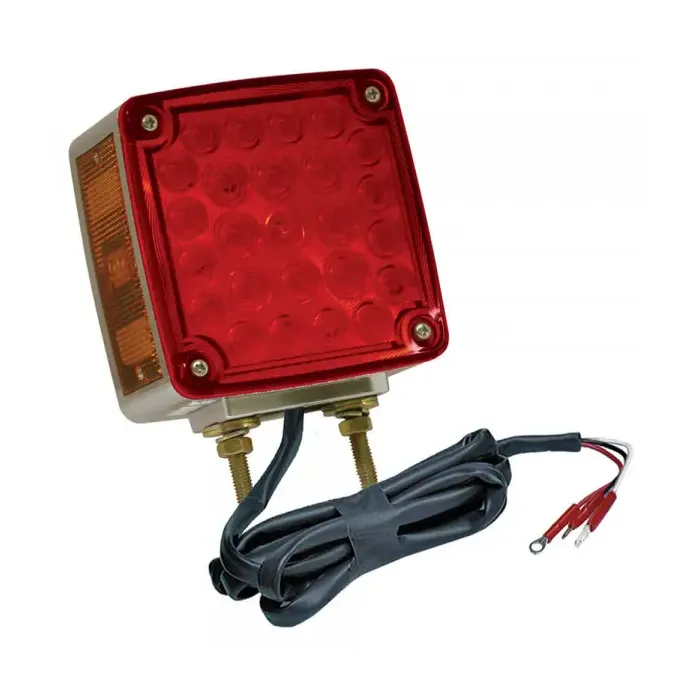

Grote G5530 – Hi Count® Double-Face LED Stop Tail Turn Light with Side Marker (LH, Chrome)
360-Degree Visibility with Hi Count® LED Technology The Grote G5530 is the ultimate safety solution for fender-mounted applications on heavy-duty trucks and trailers. This double-face lamp features 25 high-intensity red diodes on one side and 25 amber diodes on the reverse, paired with an integrated 2-diode side marker. The result is a crisp, full-pattern light output that significantly outperforms traditional incandescent bulbs, providing instant-on signaling that gives trailing drivers more time to react.
Rugged Construction & Show-Quality Finish Built to survive the toughest hauls while maintaining a premium appearance, the G5530 is housed in a sleek, chrome-plated ABS housing. The impact-resistant acrylic lenses are hermetically sealed to the housing, creating a permanent moisture-proof barrier that prevents the "green rot" of internal corrosion. Whether you're navigating salt-covered winter roads or high-pressure truck washes, this light is engineered to endure.
Simple Installation and Universal Compatibility Upgrading your lighting system is straightforward with the 2-stud mounting design and an attached 3-wire harness. The G5530 is a direct replacement for most standard square pedestal lights and is fully compliant with FMVSS 108 standards. Its low amperage draw reduces the load on your electrical system, making it an efficient choice for modern fleets and custom builds alike.
Product Features & Benefits:
360-Degree Visibility with Hi Count® LED Technology The Grote G5530 is the ultimate safety solution for fender-mounted applications on heavy-duty trucks and trailers. This double-face lamp features 25 high-intensity red diodes on one side and 25 amber diodes on the reverse, paired with an integrated 2-diode side marker. The result is a crisp, full-pattern light output that significantly outperforms traditional incandescent bulbs, providing instant-on signaling that gives trailing drivers more time to react.
Rugged Construction & Show-Quality Finish Built to survive the toughest hauls while maintaining a premium appearance, the G5530 is housed in a sleek, chrome-plated ABS housing. The impact-resistant acrylic lenses are hermetically sealed to the housing, creating a permanent moisture-proof barrier that prevents the "green rot" of internal corrosion. Whether you're navigating salt-covered winter roads or high-pressure truck washes, this light is engineered to endure.
Simple Installation and Universal Compatibility Upgrading your lighting system is straightforward with the 2-stud mounting design and an attached 3-wire harness. The G5530 is a direct replacement for most standard square pedestal lights and is fully compliant with FMVSS 108 standards. Its low amperage draw reduces the load on your electrical system, making it an efficient choice for modern fleets and custom builds alike.
Product Features & Benefits:
- Double-Face Design: High-intensity Red (Rear) and Amber (Front) signals in one unit.
- Integrated Side Marker: Includes a 2-diode side marker and reflex reflector for full compliance.
- 25-Diode Hi Count® Array: Provides a dense, brilliant light pattern for maximum safety.
- Chrome-Plated Housing: Delivers a custom, show-truck finish with heavy-duty ABS durability.
- Hermetically Sealed: Permanent lens-to-housing bond locks out dust, salt, and moisture.
- Brand: Grote Industries
- Part Number: G5530 (Left Hand / Driver Side)
- Material: Acrylic Lens / ABS Housing
- Finish: Chrome Plated
- Voltage: 12V DC
- Amperage: 0.19A – 0.78A
- Mounting: 2-Stud Bolt
- Connection: Ring Terminal / 3-Wire Harness
- Functions: A, I, T, P, P2 (Stop, Tail, Turn, Marker, Reflex)
- VMRS Code: 034-002-059
Lens Color
RED / YELLOW
Shipping Weight (lbs)
1.550000
Total Height
2.5
Total Width
5
