SKU
G5540
Manufactures SKU
GROTE G5540

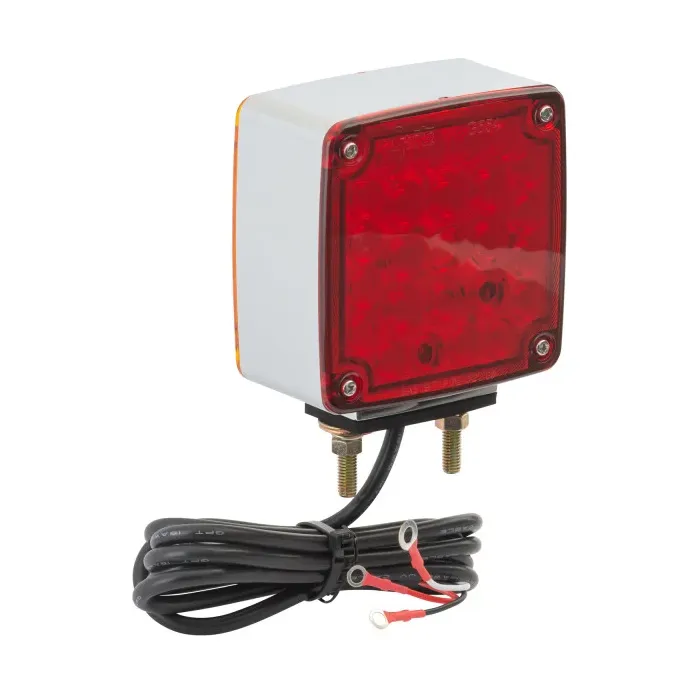

STOP/TURN/TAIL LAMP - RED/YELLOW - HI COUNT® LED - 4IN SQUARE PEDESTAL LAMP - PASSENGER SIDE
$72.64
EA
Grote G5540 – Hi Count® Double-Face LED Stop Tail Turn Light with Side Marker (RH, Chrome)
Industry-Leading Dual-Sided Signaling The Grote G5540 is the professional choice for fender-mounted signaling. This double-face lamp features 25 high-intensity red diodes for rear signaling and 25 brilliant amber diodes for front-facing turn signals, plus an integrated 2-diode amber side marker. Utilizing Grote’s Hi Count® technology, this lamp provides a dense, full-pattern light output that ensures your intentions are clear to all surrounding traffic, day or night.
Show-Quality Finish with Heavy-Duty Performance Designed for the driver who demands both style and substance, the G5540 is encased in a premium chrome-plated ABS housing. The high-impact acrylic lenses are hermetically sealed to the housing, creating an airtight, moisture-proof barrier. This rugged construction protects internal components from "green rot" corrosion, road salt, and vibration, making it ideal for the harshest long-haul environments.
Simplified Universal Installation Replacing your passenger-side pedestal light is efficient thanks to the 2-stud mounting design and pre-installed ring terminal wiring. The G5540 is fully compliant with FMVSS 108 standards (Functions A, I, T, P, P2) and features a low amperage draw that minimizes the load on your electrical system. Whether you're upgrading a commercial fleet or a custom show truck, this light delivers a modern, energy-efficient solution.
Product Features & Benefits:
Industry-Leading Dual-Sided Signaling The Grote G5540 is the professional choice for fender-mounted signaling. This double-face lamp features 25 high-intensity red diodes for rear signaling and 25 brilliant amber diodes for front-facing turn signals, plus an integrated 2-diode amber side marker. Utilizing Grote’s Hi Count® technology, this lamp provides a dense, full-pattern light output that ensures your intentions are clear to all surrounding traffic, day or night.
Show-Quality Finish with Heavy-Duty Performance Designed for the driver who demands both style and substance, the G5540 is encased in a premium chrome-plated ABS housing. The high-impact acrylic lenses are hermetically sealed to the housing, creating an airtight, moisture-proof barrier. This rugged construction protects internal components from "green rot" corrosion, road salt, and vibration, making it ideal for the harshest long-haul environments.
Simplified Universal Installation Replacing your passenger-side pedestal light is efficient thanks to the 2-stud mounting design and pre-installed ring terminal wiring. The G5540 is fully compliant with FMVSS 108 standards (Functions A, I, T, P, P2) and features a low amperage draw that minimizes the load on your electrical system. Whether you're upgrading a commercial fleet or a custom show truck, this light delivers a modern, energy-efficient solution.
Product Features & Benefits:
- Triple-Function Output: Combined Stop/Tail/Turn, Front Turn, and Side Marker/Reflex functions.
- 52 Total Diodes: High-density Hi Count® array for maximum road presence and safety.
- Hermetically Sealed: Permanent lens-to-housing bond prevents internal moisture and corrosion.
- Chrome-Plated ABS: Provides a custom, polished look with corrosion-resistant durability.
- Passenger Side (RH) Optimized: Specifically wired and configured for right-hand mounting.
- Brand: Grote Industries
- Part Number: G5540 (Right Hand / Passenger Side)
- Material: Acrylic Lens / ABS Housing
- Voltage: 12V DC
- Amperage: 0.19A (Marker) / 0.78A (Stop/Turn)
- Mounting: 2-Stud Bolt
- Compliance: SAE A, I, T, P, P2; FMVSS 108
- VMRS Code: 034-002-059
- Warranty: 2 Years
Lens Color
RED / YELLOW
Shipping Weight (lbs)
1.540000
Total Height
6.25
Total Width
4.75
