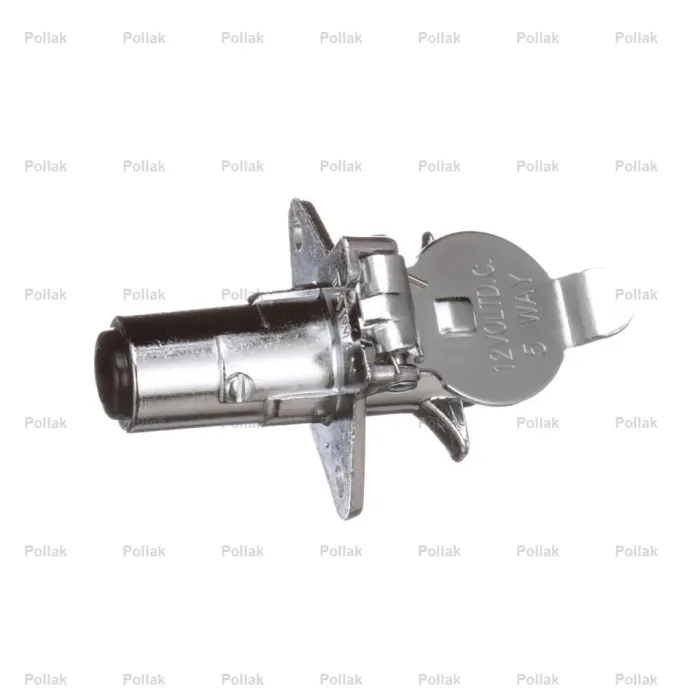

Pollak 11-500 Heavy-Duty 5-Way Round Trailer Connector - Chrome Die-Cast Zinc

Heavy-Duty Power for Specialized Towing The Pollak 11-500 5-Way Round Trailer Connector is a professional-grade vehicle-side connector engineered for heavy-duty and commercial applications. While 4-way connectors handle the basics, the 5-way configuration provides that essential extra circuit—perfect for trailers with surge brakes, auxiliary lighting, or additional power requirements.

Rugged Construction for Harsh Environments Built to outlast standard plastic alternatives, the 11-500 features a premium chrome-plated zinc die-cast housing. This provides superior resistance to corrosion, road salt, and physical impact. The interior is fitted with high-impact green ABS thermoplastic insulators and split-brass contacts, ensuring a high-conductivity connection that stays secure even under heavy vibration.

The Pollak 11-500 features a spring-loaded cover with a heavy-duty hinge to protect the internal terminals from dirt and moisture when not in use. The polarized design ensures a perfect match with the trailer plug every time, preventing shorts and protecting your vehicle's delicate electrical system.

Key Features & Benefits:

• Die-Cast Zinc Housing: Chrome-plated for maximum durability and professional aesthetics.

• 5-Way Configuration: Provides circuits for tail, stop, turn signals, ground, and one auxiliary/brake lead.

• Spring-Loaded Lid: Keeps the socket clean and dry when disconnected.

• Superior Conductivity: Split-brass contacts offer a tight mechanical fit and excellent electrical flow.

• Standard Mounting: Two-hole mounting flange for easy installation on truck bumpers or mounting brackets.

• Heat Resistant: High-impact green ABS insulator withstands high-temperature environments.

Technical Specifications:

• Part Number: 11-500 (11-500P)

• Connection Type: 5-Pole Round

• Voltage Rating: 12-24V DC

• Current Rating: 20 Amps

• Material: Chrome-Plated Zinc Die-Cast

• Mounting: 2-Hole Flange (2.88" center-to-center)
