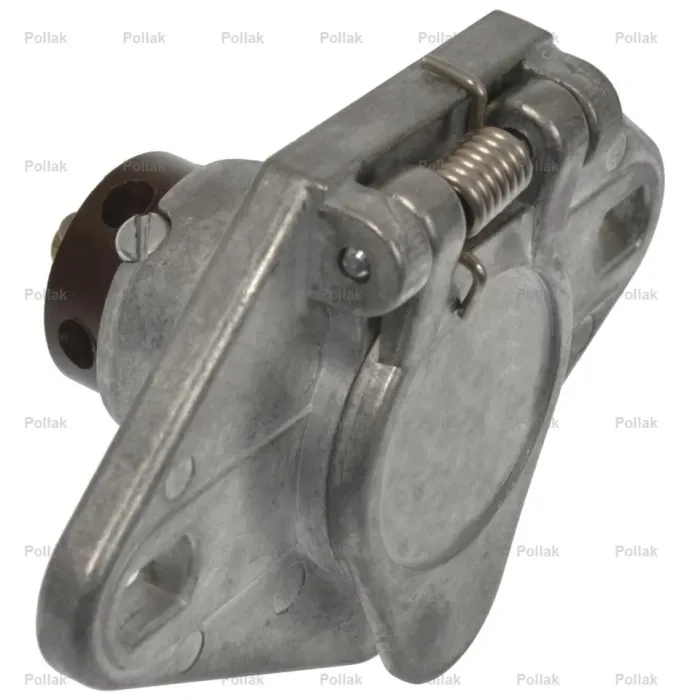

Pollak 11-607 6-Way Round Trailer Connector Socket - Heavy-Duty Chrome Die-Cast Zinc

Professional Grade Vehicle-Side Power The Pollak 11-607 6-Way Round Socket is the definitive choice for trucks and tow vehicles requiring a robust electrical interface. This vehicle-side connector provides reliable power for standard trailer lighting as well as the two additional circuits typically required for electric trailer brakes and auxiliary battery charging.

Rugged Die-Cast Zinc Construction Built to outperform and outlast plastic alternatives, the 11-607 is housed in high-strength chrome-plated zinc die-cast. This industrial-grade shell provides maximum protection against impact, road debris, and the corrosive effects of salt and moisture. The interior features high-impact green ABS thermoplastic insulators that provide superior dielectric strength and heat resistance.

Secure and Consistent Connection Safety on the road starts with a secure connection. The 11-607 utilizes split-brass contacts to ensure a high-conductivity "tension-fit" with the trailer plug, effectively eliminating flickering lights caused by road vibration. A heavy-duty, spring-loaded cover shields the internal terminals from dirt and weather when the trailer is disconnected, while the polarized design ensures the plug aligns perfectly every time.

Key Features & Benefits:

• Die-Cast Zinc Housing: Chrome-plated for a professional finish and extreme durability in harsh environments.

• 6-Pole Versatility: Supports ground, tail, stop, and turn signals, plus two auxiliary leads (typically for brakes and power).

• Spring-Loaded Lid: Features a heavy-duty hinge to keep the socket clean and dry when not in use.

• Split-Brass Contacts: Provides maximum electrical flow (20 Amp rating) and a secure mechanical fit.

• Weatherproof Design: Engineered to resist corrosion, moisture, and road chemicals.

• Standard Mounting: Features a two-hole mounting flange for easy installation on bumpers or mounting brackets.

Technical Specifications:

• Part Number: 11-607 (11-607P)

• Connection Type: 6-Pole Round Pin (Vehicle-Side Socket)

• Voltage Rating: 12-24V DC

• Current Rating: 20 Amps

• Material: Chrome-Plated Zinc Die-Cast

• Insulator: High-Impact Green ABS Thermoplastic

• Mounting: 2-Hole Flange (2.88" center-to-center)

• Compatibility: Pairs with Pollak 11-604 or 11-605 Trailer Plugs.
