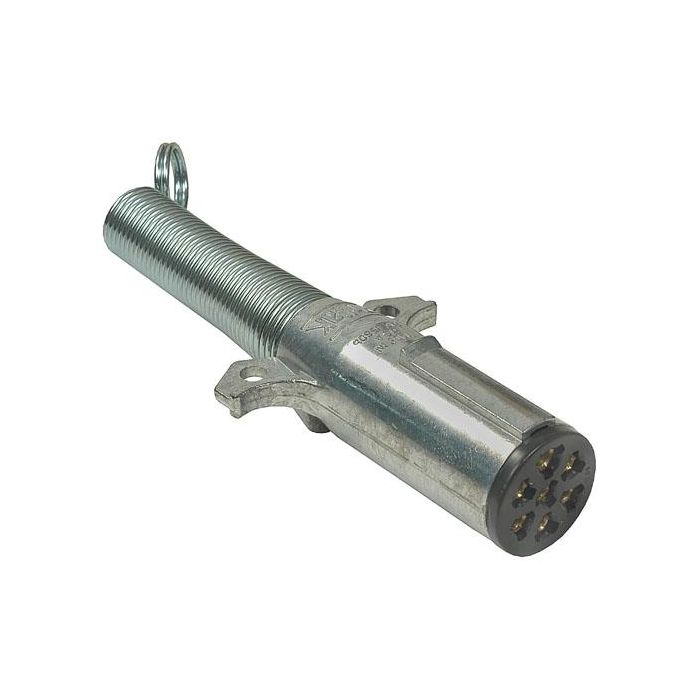

Pollak 11-702 7-Way Round Pin Trailer Connector Plug with Heavy-Duty Spring Cable Guard

Maximum Wiring Protection for Heavy-Duty Hauling The Pollak 11-702 7-Way Round Pin Trailer Plug is the premier choice for commercial fleets and heavy-duty operators who require a connection that can survive the most punishing road conditions. This trailer-side plug is equipped with a heavy-duty steel spring cable guard, designed to prevent cable kinking, chafing, and strain at the point of entry. This critical feature ensures that your lighting, brakes, and auxiliary power circuits remain intact during tight maneuvers and high-vibration transit.

Industrial Die-Cast Zinc Durability Engineered for longevity, the 11-702 features a high-strength die-cast zinc housing. This metallic exterior provides far superior impact resistance compared to plastic alternatives and offers excellent defense against road salt and moisture. The interior is fitted with high-impact green ABS thermoplastic insulators and split-brass contacts, delivering a secure "tension-fit" that maintains consistent electrical conductivity and eliminates flickering signals.

Built for the Fleet Professional Pollak has designed this plug with user-friendly features that reduce downtime. An internal cable clamp provides a second layer of strain relief, anchoring the wires securely to prevent them from pulling out of the terminals. The tapered body includes integral finger grips for easy, non-slip coupling and uncoupling, even in freezing weather or when wearing thick work gloves.

Key Features & Benefits:

• Steel Spring Cable Guard: Protects the wiring harness from sharp bends, kinking, and environmental wear.

• Die-Cast Zinc Housing: Industrial-grade construction for maximum durability and corrosion resistance.

• 7-Pole Round Pin Design: The standard for heavy-duty commercial, agricultural, and industrial trailers.

• Split-Brass Contacts: Provides maximum electrical flow (30 Amp rating) and a vibration-proof connection.

• Dual Strain Relief: Combines an external spring guard with an internal cable clamp for ultimate wire protection.

• Universal 7-Way Fit: Fully interchangeable with all standard 7-way round pin vehicle-side sockets.

Technical Specifications:

• Part Number: 11-702 (11-702P)

• Connector Type: 7-Pole Round Pin (Trailer-Side Plug)

• Special Feature: Heavy-Duty Spring Cable Guard

• Voltage Rating: 12-24V DC

• Current Rating: 30 Amps

• Material: Die-Cast Zinc

• Pairing: Fits standard 7-way round pin sockets (Pairs with Pollak 11-707 or 11-724).
