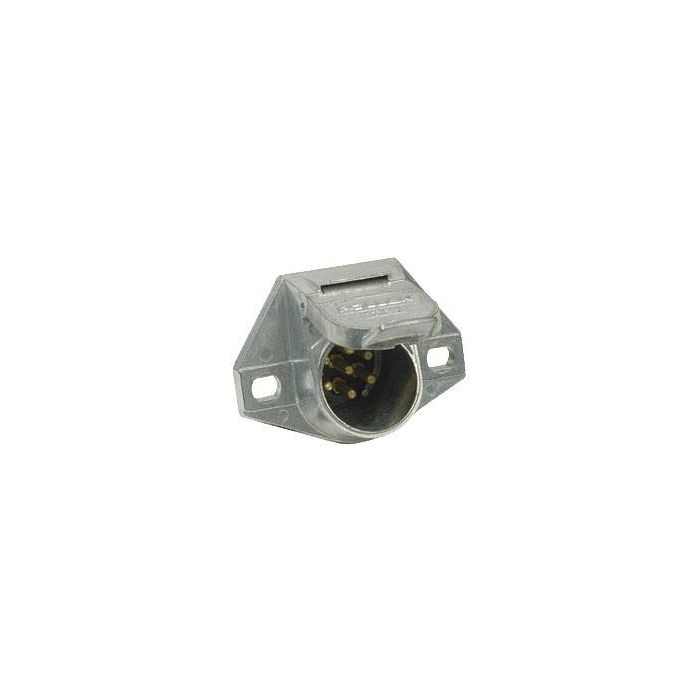

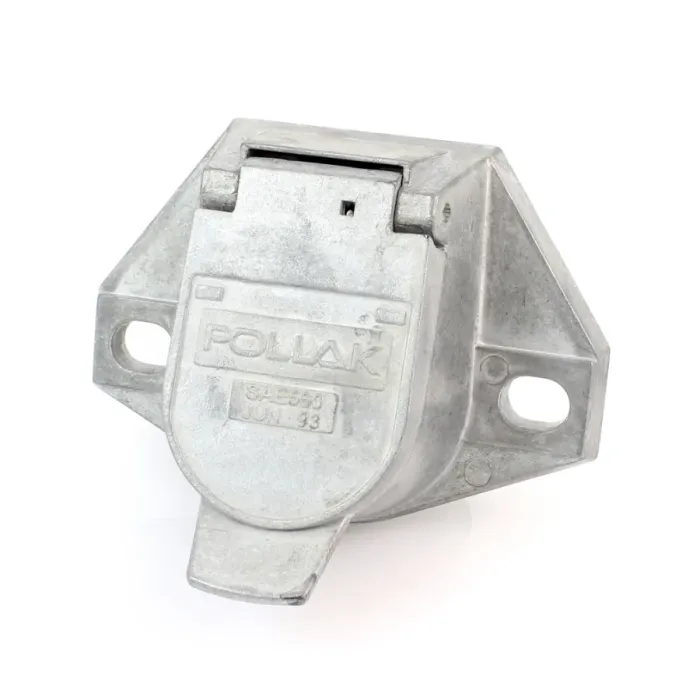

Pollak 11-720 7-Way Round Pin Trailer Socket - Heavy-Duty Die-Cast Zinc with Solid Pins

Industrial-Strength Vehicle-Side Power The Pollak 11-720 7-Way Round Pin Socket is engineered for the rigors of heavy-duty commercial, industrial, and agricultural towing. Designed for the vehicle-side connection, this socket provides a robust interface for power, lighting, and auxiliary systems. Its specialized solid brass pin design ensures a stable, high-conductivity connection that can withstand the high-cycle use typical of fleet operations.

Built to Outlast the Elements Constructed from high-strength die-cast zinc, the 11-720 offers superior impact resistance and professional-grade durability. The housing is designed to shield internal components from road salt, moisture, and debris. To ensure long-term reliability, the socket features a heavy-duty, spring-loaded cover that snaps shut with a positive-catch lid, keeping the terminals clean and dry when not in use.

Engineered for Professional Performance Safety and reliability are at the core of the 11-720. The interior utilizes high-impact green ABS thermoplastic insulators for maximum heat resistance and dielectric strength. The solid pins provide a rock-solid mechanical fit with the trailer plug, significantly reducing the risk of voltage drop or flickering lights caused by vehicle vibration.

Key Features & Benefits:

• Die-Cast Zinc Housing: Industrial-grade construction for maximum service life in harsh environments.

• Solid Brass Pins: Provides superior durability and consistent electrical flow for heavy-duty applications.

• 7-Pole Round Pin Design: The standard configuration for heavy-duty commercial and fleet trailers.

• Spring-Loaded Lid: Features a heavy-duty hinge and weather-tight seal to protect terminals from the elements.

• High-Impact Insulator: Green ABS interior resists heat, chemicals, and physical stress.

• Standard Mounting: Features a 2-hole mounting flange for easy installation on bumpers or brackets.

Technical Specifications:

• Part Number: 11-720 (11-720P)

• Configuration: 7-Pole Round Pin (Vehicle-Side Socket)

• Pin Type: Solid Brass Pins

• Voltage Rating: 12-24V DC

• Current Rating: 30 Amps

• Material: Die-Cast Zinc

• Mounting: 2-Hole Flange (2.93" centers)

• Standards: Meets and exceeds SAE J560 specifications.
