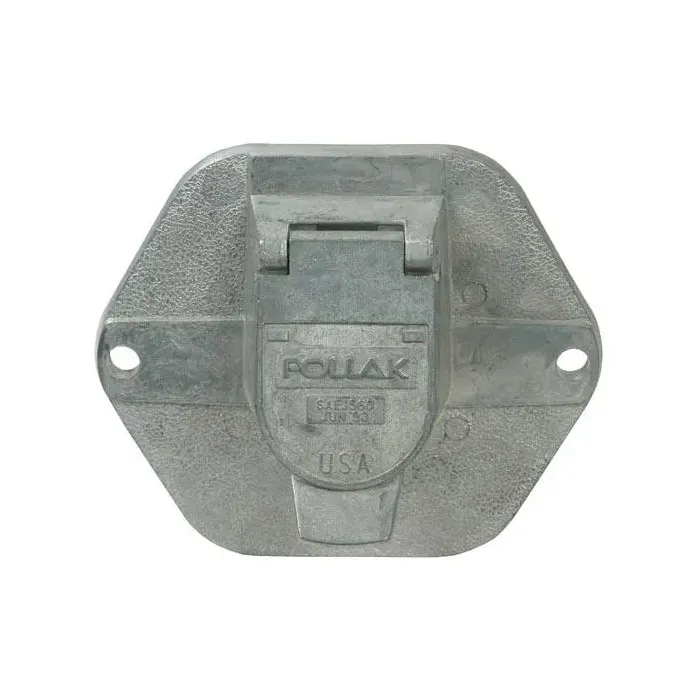

Pollak 11-736 7-Way Round Pin Trailer Socket with Integrated 20A Circuit Breaker & Solid Pins

Enhanced Electrical Protection for Heavy-Duty Towing The Pollak 11-736 7-Way Round Pin Socket provides an extra layer of security for your vehicle's electrical system. Designed for the vehicle-side connection, this specialized socket features an integrated 20 Amp circuit breaker. This built-in safety mechanism protects your auxiliary circuits from overloads and short circuits, preventing damage to the vehicle's wiring harness and reducing the risk of downtime during critical hauls.

Rugged Construction & Maximum Conductivity Built for the extreme conditions of commercial and agricultural towing, the 11-736 is housed in high-strength die-cast zinc. This metallic shell offers superior impact resistance and professional-grade durability. Inside, the socket utilizes solid brass pins, ensuring a stable, high-conductivity connection that can withstand high-cycle use. The interior is fitted with a high-impact green ABS thermoplastic insulator, providing excellent heat resistance and dielectric strength.

Engineered for the Long Haul To ensure your connection remains clean and operational, the 11-736 features a heavy-duty, spring-loaded cover. The positive-catch lid snaps shut to shield the internal pins from road salt, moisture, and debris when the trailer is disconnected. With its combination of integrated protection and industrial-grade materials, this socket is the ideal choice for fleet operators and heavy-duty truck owners.

Key Features & Benefits:

• Integrated 20A Circuit Breaker: Protects auxiliary circuits from electrical overloads and shorts.

• Solid Brass Pins: Delivers superior durability and consistent electrical flow for high-demand applications.

• Die-Cast Zinc Housing: Industrial-strength construction for maximum resistance to impacts and the elements.

• 7-Pole Round Pin Design: Standard SAE J560 configuration for commercial and industrial trailers.

• Spring-Loaded Protective Cover: Features a weather-tight seal to keep terminals dry and debris-free.

• Standard 2-Hole Mount: Easy installation on vehicle bumpers or mounting brackets.

Technical Specifications:

• Part Number: 11-736 (11-736P)

• Configuration: 7-Pole Round Pin (Vehicle-Side Socket)

• Circuit Protection: Built-in 20 Amp Breaker

• Pin Type: Solid Brass Pins

• Voltage Rating: 12-24V DC

• Material: Die-Cast Zinc / Green ABS Insulator

• Mounting: 2-Hole Flange (2.93" center-to-center)
