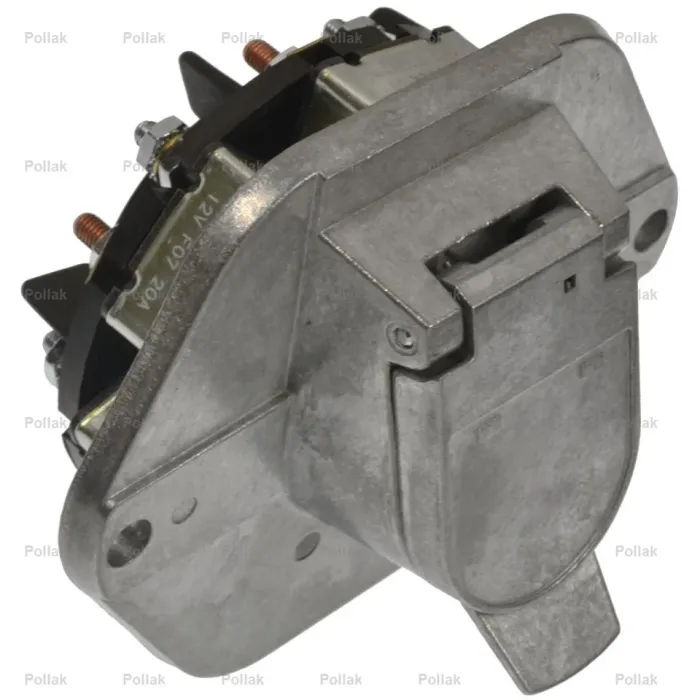

Pollak 11-737 7-Way Round Pin Trailer Socket with Integrated 20A Circuit Breaker & Split Pins

Heavy-Duty Power with Built-In Circuit Protection The Pollak 11-737 7-Way Round Pin Socket is a specialized vehicle-side connector engineered for commercial fleets that demand both high performance and electrical safety. This model stands out by featuring an integrated 20 Amp circuit breaker, providing a dedicated line of defense for your auxiliary circuits. By stopping overloads and shorts at the socket, it protects your truck's primary wiring harness and reduces the risk of electrical fires or expensive system repairs.

Precision Split-Pin Conductivity Designed for the high-vibration environment of long-haul trucking, the 11-737 utilizes split-brass pins. This design ensures a self-adjusting "tension fit" when coupled with a trailer plug, maximizing surface contact and preventing the intermittent power loss or flickering lights often caused by road shock.

Rugged Die-Cast Construction Housed in high-strength die-cast zinc, the 11-737 is built to withstand the physical abuse of industrial work sites and the corrosive effects of road salt. The interior features a high-impact insulator for superior heat resistance. To protect the terminals when not in use, a heavy-duty, spring-loaded cover with a positive-catch lid snaps shut to seal out moisture, dirt, and road grime.

Key Features & Benefits:

• Integrated 20A Circuit Breaker: Provides essential protection against electrical overloads and short circuits.

• Split-Brass Pins: Ensures a secure, high-conductivity connection even under heavy vibration.

• Die-Cast Zinc Housing: Industrial-grade durability with professional-grade corrosion resistance.

• 7-Pole Round Pin Design: Standard SAE J560 configuration for commercial and agricultural trailers.

• Weather-Tight Seal: Spring-loaded lid with a heavy-duty hinge protects internal terminals from the elements.

• Easy Installation: Standard 2-hole flange mounting for secure attachment to bumpers or hitch brackets.

Technical Specifications:

• Part Number: 11-737 (11-737P)

• Configuration: 7-Pole Round Pin (Vehicle-Side Socket)

• Circuit Protection: Built-in 20 Amp Breaker

• Pin Type: Split-Brass Pins

• Voltage Rating: 12-24V DC

• Material: Die-Cast Zinc

• Mounting: 2-Hole Flange (2.93" center-to-center)
