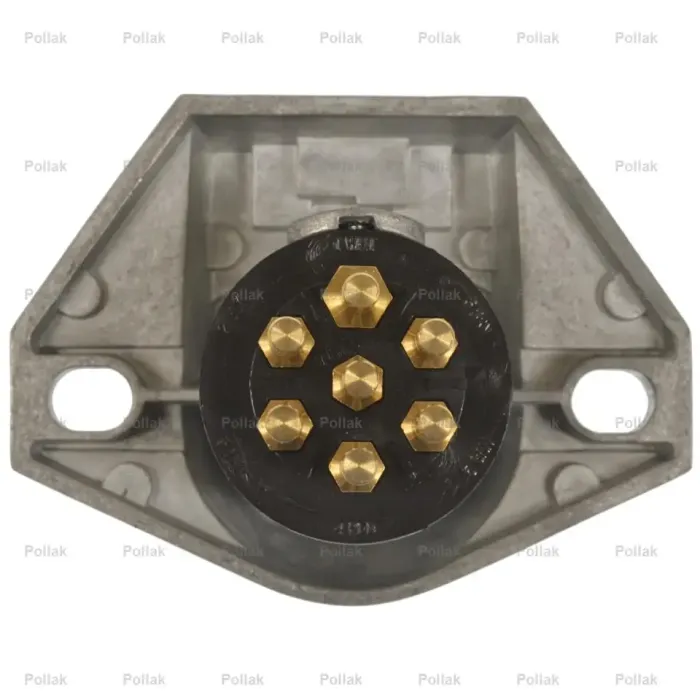

Pollak 11-797 7-Way Round Pin Trailer Socket - Zinc Die-Cast with Push-On Terminals & Solid Pins

The Ultimate Time-Saving Solution for Heavy-Duty Wiring The Pollak 11-797 7-Way Round Pin Socket is engineered for fleet professionals who demand speed without sacrificing reliability. This specialized vehicle-side connector features integrated 1/4" push-on terminals, allowing for a faster and cleaner installation compared to traditional screw-type connectors. Designed for the high-cycle demands of commercial trucking and industrial hauling, the 11-797 ensures a secure electrical path for lighting, brakes, and auxiliary systems.

Maximum Connectivity with Solid Brass Pins Reliability starts at the contact point. This socket is equipped with solid brass pins, which provide superior electrical conductivity and physical durability over stamped or hollow alternatives. The solid pin design is specifically built to withstand the rigors of heavy-duty towing, ensuring a stable connection that won't deform under the pressure of thick commercial trailer cables.

Built to Survive Harsh Environments Encased in a rugged zinc die-cast housing, the 11-797 is built to resist impacts, road debris, and the corrosive effects of road salt. The interior features an optimum slant-mount design and a built-in drain slot to rid the housing of accumulated moisture, preventing internal corrosion. A heavy-duty, spring-loaded cover with a positive-catch lid keeps the terminals clean and dry when not in use.

Key Features & Benefits:

• Push-On Terminals: 1/4" male tabs allow for rapid wiring with standard female disconnects—no more loose screw terminals.

• Solid Brass Pins: Machined from solid bar stock for maximum durability and minimal voltage drop.

• Zinc Die-Cast Housing: Industrial-grade construction provides professional durability and impact resistance.

• SAE J560 Compliant: The standard configuration for heavy-duty commercial and agricultural trailers.

• Moisture Management: Features an internal drain slot and slant-mount design to prevent water pooling.

• High-Impact Insulator: Interior is built to resist heat and physical stress while ensuring proper pin alignment.

Technical Specifications:

• Part Number: 11-797 (Bulk) / 11-797P (Packaged)

• Configuration: 7-Pole Round Pin (Vehicle-Side Socket)

• Pin Type: Solid Brass Pins

• Termination: 1/4" Push-On Terminals (Male Tabs)

• Material: Heavy-Duty Zinc Die-Cast

• Voltage Rating: 6-28 Volts DC

• Current Rating: 40 Amps Continuous Duty

• Mounting: Standard 2-hole flange (2.93" centers)
