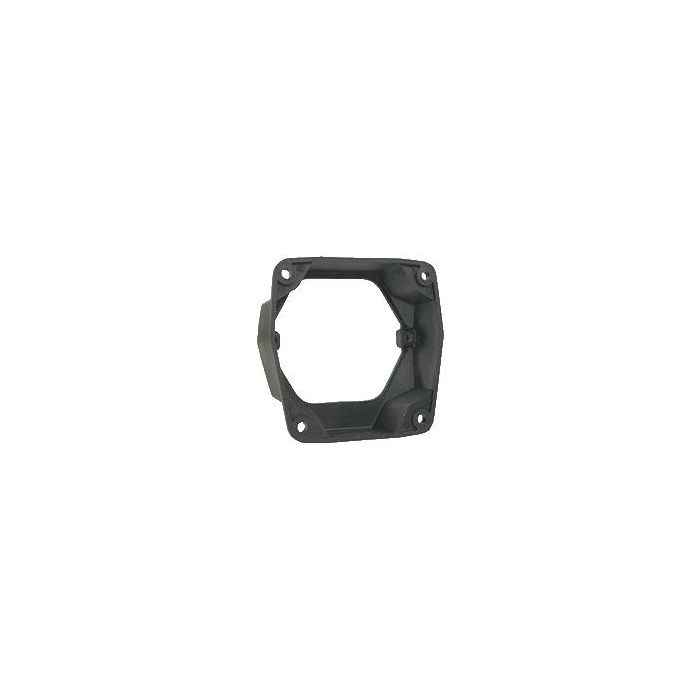

Pollak 11-802 Heavy-Duty 7-Way Adapter Housing - Glass-Filled Nylon with Moisture Drain

Engineered for Extreme Durability and Cable Management The Pollak 11-802 Adapter Housing is a professional-grade mounting solution built to thrive in the harshest commercial environments. Constructed from rugged glass-filled nylon, both the base and back plates are engineered to resist breaking, impact, and the corrosive effects of road chemicals. This high-strength material ensures that your 7-way connection remains structurally sound, even under the physical stress of heavy-duty towing.

Advanced Support and Moisture Protection Designed with the operator in mind, the 11-802 features an extended bottom lip, providing superior support for both the trailer plug and the heavy cable harness. This reduces strain on the connector and internal terminals. To combat internal corrosion, a built-in drain hole is incorporated into the housing, allowing accumulated moisture to escape and ensuring the interior stays dry and functional.

Maximum Versatility and Easy Serviceability This housing is built for high-performance electrical systems, accepting the widest range of wire gauges—from #14 wire up to a #8 ground wire. It is fully compatible with all plugs conforming to SAE J560 specifications. For added safety and convenience, the 11-802 is designed for easy serviceability of circuit breakers, and it is recommended that the positive feed be attached to the auxiliary post on the circuit breaker for optimal performance.

Key Features & Benefits:

• Glass-Filled Nylon Construction: Rugged base and back plates provide maximum resistance to cracking and impact.

• Extended Bottom Lip: Offers enhanced support for the trailer plug and cable to prevent sagging and strain.

• Integrated Drain Hole: Prevents moisture buildup inside the housing, shielding terminals from corrosion.

• Wide Wire Gauge Capacity: Accepts everything from #14 gauge wire to #8 ground wire for high-power applications.

• J560 Compatibility: Fits all standard 7-way round pin trailer plugs meeting SAE specifications.

• Serviceable Design: Engineered for quick access to circuit breakers; ground can be tied to any rear terminal plate mounting screw.

Technical Specifications:

• Part Number: 11-802 (11-802P)

• Material: Glass-Filled Nylon (Black)

• Wire Range: #14 to #8 AWG

• Standards: SAE J560 Compliant

• Circuit Protection: Compatible with integrated circuit breaker setups

• Application: Truck noseboxes, flatbeds, and heavy-duty commercial trailers
