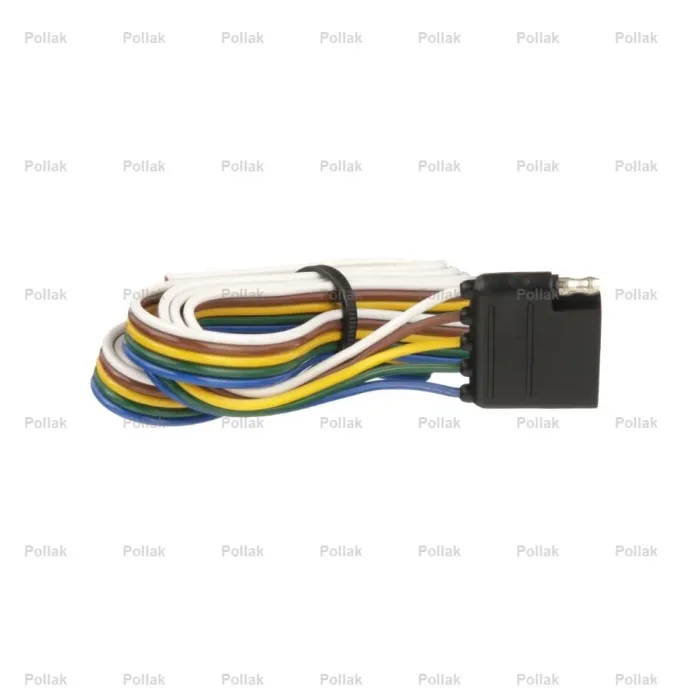

Pollak 12-500 | 5-Way Flat Female Wiring Harness – 60” Lead

The Pollak 12-500 is a premium 5-Way Flat Female (Vehicle End) Wiring Harness designed for specialized towing needs. While standard 4-way plugs handle basic lighting, this 5-pole connector includes an additional blue wire, making it the industry standard for trailers equipped with surge brakes or auxiliary backup lights. With a 60-inch lead, it provides maximum flexibility for routing through vehicle frames and reaching even the most recessed hitch locations.

Key Features & Benefits:

• Integrated 5th Wire (Blue): Specifically designed to activate the reverse solenoid on surge brakes, preventing the brakes from locking up while reversing. It can also be used for auxiliary backup lights.

• Extended 5-Foot Reach: The 60-inch lead ensures you have plenty of wire to route from the vehicle's taillight assembly to the hitch without the need for additional extensions.

• Molded Weather Protection: The female plug is fully molded to seal out dirt, moisture, and road salt, ensuring long-term electrical conductivity and preventing terminal rot.

• Heavy-Duty Construction: Features 18-gauge bonded wire that remains flexible in cold weather and resists abrasion.

• Industry Standard Color-Coding:

• White: Ground

• Brown: Tail / Marker Lights

• Yellow: Left Turn / Brake

• Green: Right Turn / Brake

• Blue: Auxiliary / Surge Brake Lockout

Technical Specifications:

• Part Number: 12-500

• Connector Gender: Female (Vehicle End)

• Lead Length: 60 Inches (5 Feet)

• Wire Gauge: 18 AWG

• Voltage: 12 Volts

• Amperage: 15 Amps

• Format: 5-Pole Flat
