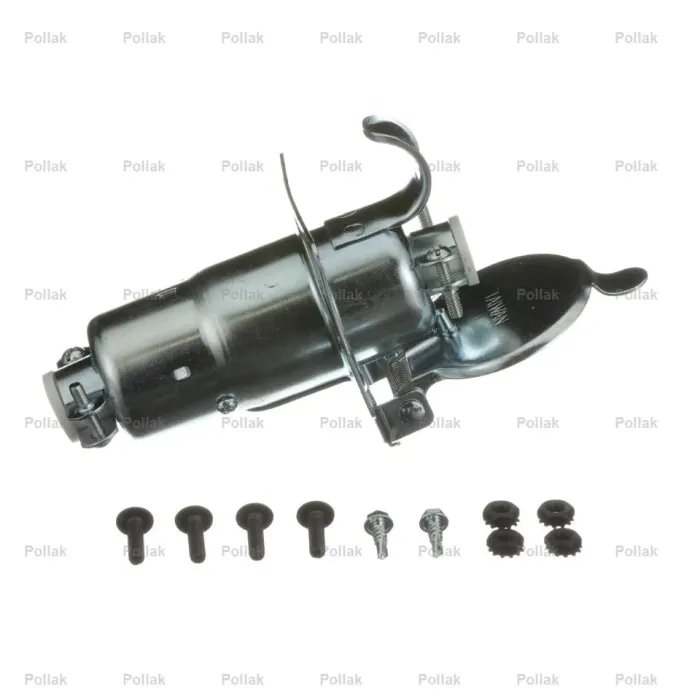

Pollak 12-700 7-Way RV-Style Metal Plug & Connector Kit – Heavy Duty Trailer Wiring Set

Reliable Power for the Long Haul

Upgrade your towing setup with the Pollak 12-700 7-Way RV-Style Metal Plug & Connector Kit. Engineered for durability and maximum conductivity, this complete kit includes both the vehicle-end socket (12-703) and the trailer-end plug (12-702), ensuring a secure and weather-resistant electrical connection between your truck and trailer.

Built to Withstand the Elements

Constructed from heavily plated metal, this kit is designed to resist corrosion and rust even in the harshest environments. The socket features a spring-loaded cover with a stainless steel spring to protect the terminals when not in use, while the integrated safety latch prevents accidental pull-aways and disconnects during travel.

Superior Internal Engineering

Inside, you’ll find a non-corroding, shock-resistant interior designed with unique terminal reinforcer dams. These "dams" eliminate short-circuiting by preventing contact spreading. The solid brass terminals ensure minimum voltage drop, and the center pin is robust enough to accept up to 8-gauge wire for auxiliary power.

Key Features & Benefits:

• Complete Kit: Includes 7-pole metal socket (vehicle side) and 7-pole metal plug (trailer side).

• Heavy-Duty Construction: Rugged metal housing with superior plating for maximum weather protection.

• Safety First: Integrated safety latch ensures the connector stays locked in place.

• Easy Handling: Features a jumbo welded pistol grip on the plug for easy connection and removal.

• Weather-Sealed: Vinyl inserts and a moisture-resistant rubber gasket keep out dirt and grime.

• Standardized Wiring: Color-coded to RVI standards for a straightforward installation.

Specifications:

• Brand: Pollak

• Part Number: 12-700 (Consists of 12-703 Socket & 12-702 Plug)

• Voltage: 6-28 VDC

• Current Rating: 40 Amps continuous duty

• Material: Heavily plated metal / Zinc die-cast

• Terminal Type: Solid Brass
