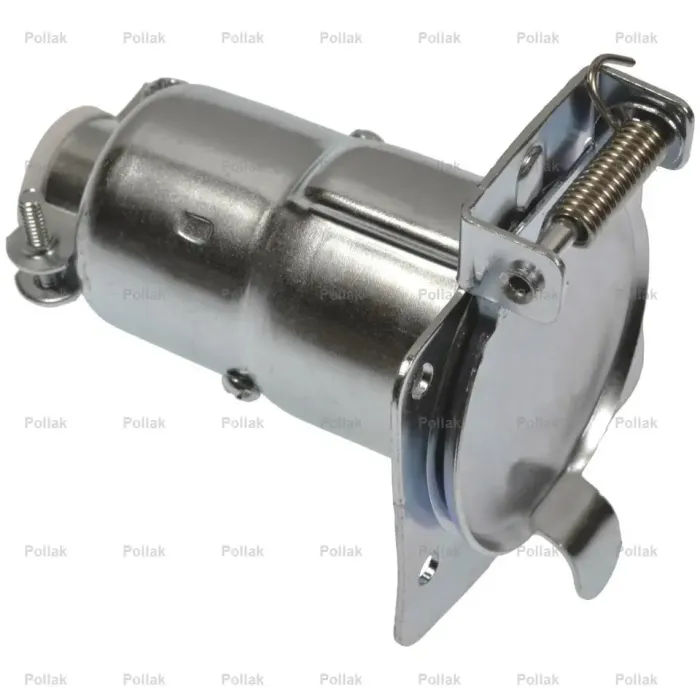

Pollak 12-703 7-Way RV-Style Metal Trailer Connector Socket – Heavy-Duty Vehicle End

The Industry Standard for Secure Towing Connections

The Pollak 12-703 7-Way RV-Style Metal Socket is a professional-grade vehicle-end connector designed to provide a reliable electrical link between your tow vehicle and trailer. Engineered for durability, this 7-pole blade-style socket is the preferred choice for heavy trucks, SUVs, and RVs that require a rugged, long-lasting wiring solution.

Superior Durability and Weather Protection

Unlike standard plastic sockets that can crack in extreme cold or under physical stress, the 12-703 features a heavily plated metal construction for maximum corrosion and impact resistance. The spring-loaded cover includes a stainless steel spring and a moisture-resistant rubber gasket to keep the terminals clean and dry when not in use.

Engineered for Safety and Performance

Inside, the 12-703 utilizes Pollak’s unique terminal reinforcer dams. These dams prevent contact spreading and eliminate the risk of short-circuiting. The shock-resistant interior ensures consistent performance even on rough terrain, while the integrated safety latch locks the trailer plug in place to prevent accidental pull-aways during transit.

Key Features & Benefits:

• Heavy-Duty Metal Housing: Zinc-plated for superior protection against rust and road salt.

• Short-Circuit Prevention: Non-corroding interior with terminal dams to prevent internal electrical shorts.

• Weather-Sealed Design: Spring-loaded lid with stainless steel hardware and vinyl inserts to keep out dirt and moisture.

• High Conductivity: Solid brass terminals ensure minimum voltage drop; center pin accepts up to 8-gauge wire for auxiliary/battery charging.

• RVI Standardized: Color-coded terminals for straightforward installation and troubleshooting.

• Universal Compatibility: Interchangeable with all standard 7-way RV-style trailer plugs.

Specifications:

• Brand: Pollak

• Part Number: 12-703 (Vehicle End)

• Type: 7-Pole, RV-Style Blade Socket

• Material: Zinc Die-Cast / Plated Metal

• Voltage/Rating: 12V - 24V / 30 Amps continuous duty

• Mounting: 2-hole vertical (1-1/2" centers) and horizontal (2-3/16" centers)
