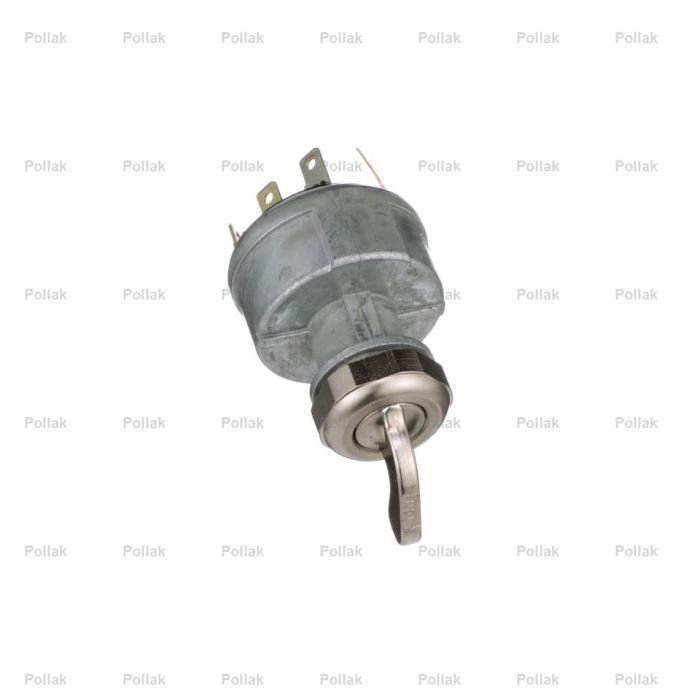

Pollak 31-223 3-Position Ignition Switch – 6 Terminal / 7 Blade .250 – Lever Actuated – Spring to Run

Heavy-Duty Lever-Operated Ignition Control

The Pollak 31-223 is a specialized 3-position ignition switch designed for applications that require a rugged lever interface rather than a traditional key. Built with a robust zinc die-cast housing and a high-impact base, this switch is engineered for longevity in agricultural, construction, and heavy-duty industrial environments.

Precision Engineering & Safety This switch features a spring-return-to-run mechanism from the "Start" position, ensuring reliable engine engagement. It is equipped with 7 blade terminals (.250") across 6 terminal points, providing versatile connectivity for complex electrical systems. The lever-actuated design is ideal for operators wearing gloves or for equipment where quick, tactile access is necessary.

Key Technical Features:

• 3-Position Functionality: Off – On/Ignition – Start (Spring return to On).

• Lever Actuator: Heavy-duty lever design replaces the standard key for ease of use in industrial settings.

• Superior Connectivity: 7-blade terminal configuration (0.250" width) for secure wiring.

• Weather Protection: Features an O-ring seal and internal lubrication to guard against moisture, dust, and corrosion.

• Rugged Construction: One-piece zinc die-cast housing ensures maximum durability under heavy vibration.

• Mounting: Designed for standard 1-inch mounting hole patterns (Pattern 1).

Product Specifications

• Manufacturer: Pollak

• Part Number: 31-223 (or 31-223P)

• Positions: 3 (Off, On, Start)

• Actuator: Lever

• Terminals: 6 Terminals / 7 Male Blades (0.250")

• Housing: Zinc Die-Cast Alloy

• Mounting Hole Pattern: Pattern 1 (Approx. 1" diameter)

• Voltage Rating: 14V DC

• Current Ratings: Ignition: 8 Amps, Start: 75 Amps (Make) / 20 Amps (Break)

• Spring Return: Yes (Start to Run)
