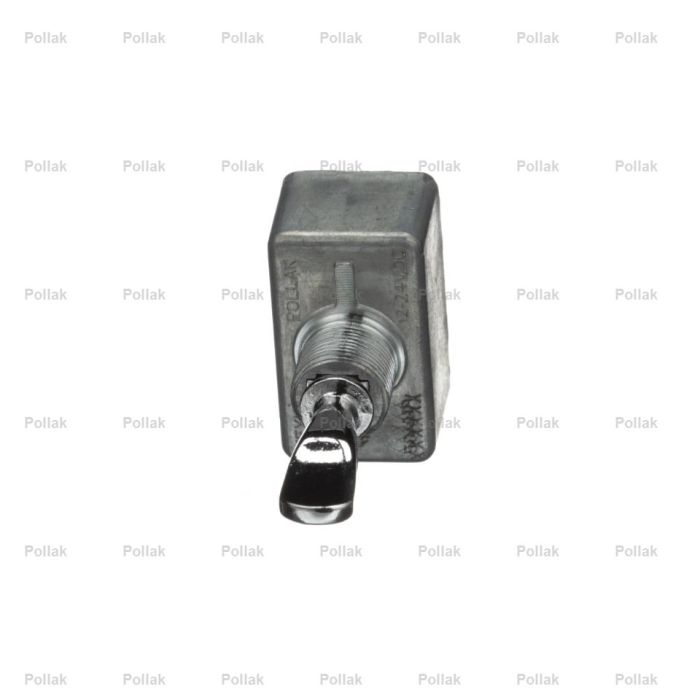

Pollak 34-216 Heavy-Duty 50 Amp Toggle Switch - SPST ON-OFF, 1/4" Quick Connect Terminals

High-Amperage Power with Rapid Installation

The Pollak 34-216 Toggle Switch is a heavyweight in the electrical world, designed for high-draw applications that require up to 50 Amps of power. Part of Pollak’s premier heavy-duty line, this switch is the perfect choice for professional installers and fleet mechanics who need the reliability of a high-capacity switch combined with the speed of 1/4" quick-connect (blade) terminals.

Superior Conductivity & Durability

To manage massive electrical loads without overheating, the 34-216 is engineered with silver-plated contacts. Silver provides the highest electrical and thermal conductivity of any metal, ensuring minimal voltage drop and preventing the contact pitting common in lesser switches. The die-cast housing and high-impact plastic base provide a rugged foundation capable of withstanding the vibration and mechanical stress of heavy-duty truck and off-road environments.

Reliable Snap-Action Performance

This Single Pole, Single Throw (SPST) switch provides a smooth, positive "snap" action for a clear ON-OFF indication. Whether you are controlling high-output lighting, heavy-duty pumps, or specialized industrial equipment, the Pollak 34-216 is built for a service life of up to 25,000 cycles at full load.

Technical Specifications:

• Part Number: 34-216 (Retail Pack: 34-216P)

• Function: ON-OFF (SPST - Single Pole, Single Throw)

• Current Rating:

• 50 Amps at 12V DC

• 25 Amps at 24V DC

• Terminals: (2) 1/4" Male Quick-Connect (Blade) Terminals

• Handle Style: Standard Chrome-Plated Bat Handle

• Contacts: High-Conductivity Silver-Plated

• Mounting: Fits standard 1/2" diameter mounting holes

• Mounting Stem: 15/32" - 32 thread; includes mounting hardware (nuts and lock washer)
