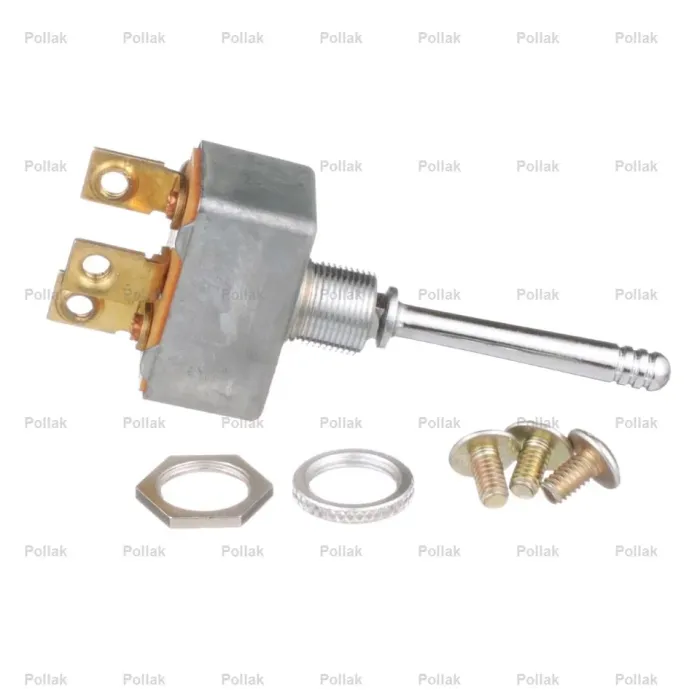

Pollak 34-220 Heavy-Duty Toggle Switch – 50 Amp, SPDT, (On)-Off-(On) Momentary, Long Handle

Reliable High-Current Control for Heavy-Duty Applications

The Pollak 34-220 Heavy-Duty Toggle Switch is engineered for maximum durability and performance in demanding environments. Designed for high-current applications, this Single Pole, Double Throw (SPDT) switch features a 50 Amp rating, making it an essential component for trucking, construction equipment, and marine electrical systems.

Key Features & Construction:

• Momentary Action: Features a (Momentary On)-Off-(Momentary On) configuration, perfect for applications requiring temporary power, such as winches, lift gates, or emergency lighting.

• Heavy-Duty Build: Constructed with a rugged die-cast body and a glass-filled nylon slide to withstand vibration and frequent use.

• Long Handle Design: Equipped with a 1.5-inch long chrome-plated handle for easy operation, even when wearing gloves.

• Superior Conductivity: Oversized internal copper contacts and a copper contact bridge ensure a long service life and minimal voltage drop.

• Secure Terminals: Includes three #8-32 screw terminals with a laminated bakelite base for secure wiring and heat resistance.

Whether you are performing a repair or upgrading your vehicle's electrical panel, the Pollak 34-220 provides the industrial-grade reliability that professional fleet operators and technicians trust.

Technical Specifications:

• Part Number: 34-220

• Circuitry: SPDT (Single Pole, Double Throw)

• Function: Momentary On - Off - Momentary On

• Rating: 50 Amps at 12V DC; 25 Amps at 24V DC

• Handle Type: 1.5" Long Chrome Handle

• Mounting Stem: 15/32" diameter, 15/32" length

• Terminals: (3) #8-32 Screw Terminals
