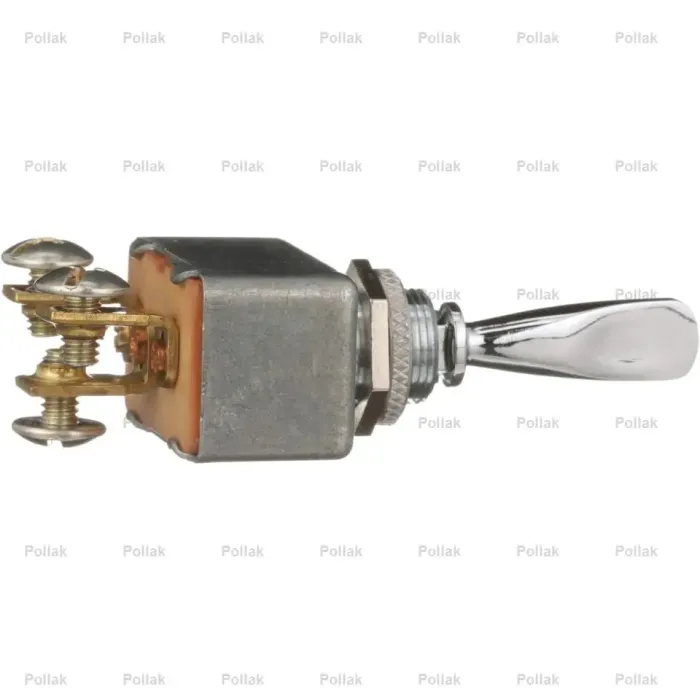

Pollak 34-225 Heavy-Duty Toggle Switch – 50 Amp, SPDT, On-On, Standard Chrome Handle

High-Amperage Precision for Professional Electrical Systems

The Pollak 34-225 Heavy-Duty Toggle Switch is a premium, industrial-grade solution designed to manage high-current circuits in heavy trucks, agricultural machinery, and marine equipment. Featuring a robust Single Pole, Double Throw (SPDT) configuration with On-On functionality, this switch is the gold standard for applications requiring consistent power delivery across two separate circuits.

Built to Outlast the Competition: Engineered for longevity, the 34-225 is constructed with a rugged die-cast housing and a glass-filled nylon slide that resists mechanical fatigue and vibration. The internal oversized copper contacts and copper contact bridge ensure maximum conductivity and minimal voltage drop, providing a long service life even under a full 50 Amp load.

Key Features & Construction:

• Two-Position Power: Features On-On circuitry, allowing you to toggle power between two different loads (such as high/low beam or primary/auxiliary systems).

• High-Current Capacity: Rated for 50 Amps at 12V DC (and up to 25 Amps at 24V DC), making it ideal for high-draw electrical components.

• Classic Chrome Handle: Equipped with a standard 1-inch chrome-plated bat handle for easy operation and a clean, professional finish on any dashboard or control panel.

• Secure Electrical Connections: Comes with three #8-32 screw terminals mounted on a laminated bakelite base for heat resistance and vibration-proof wiring.

• Universal Mounting: Fits standard 15/32" diameter mounting holes, ensuring a seamless fit for replacements or new installations.

Technical Specifications:

• Part Number: 34-225

• Circuitry: SPDT (Single Pole, Double Throw)

• Function: On - On

• Rating: 50 Amps at 12V DC; 25 Amps at 24V DC

• Handle Type: 1" Standard Chrome Handle

• Terminals: (3) #8-32 Screw Terminals

• Construction: Die-Cast Body with Copper Contacts
