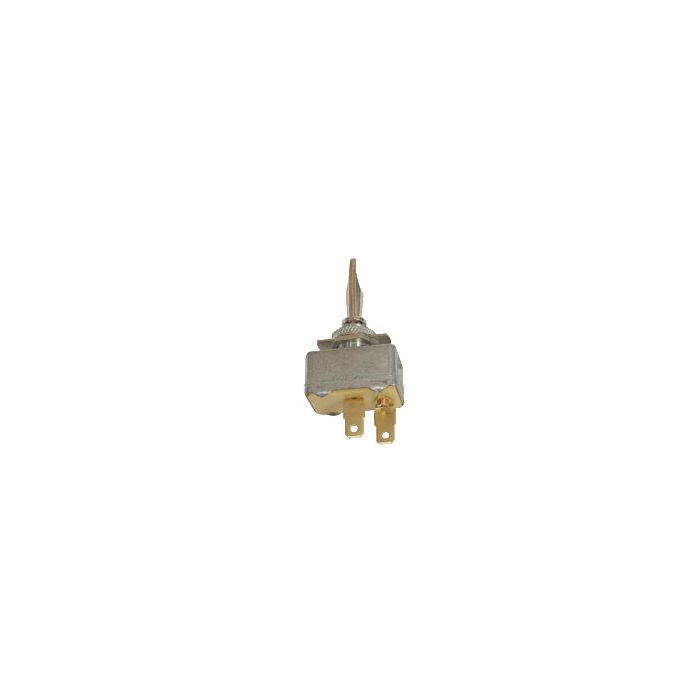

Pollak 34-226 Heavy-Duty Toggle Switch – 50 Amp, SPST, On-Off, Black Handle

The Professional Choice for High-Amperage Circuit Control

The Pollak 34-226 Heavy-Duty Toggle Switch is a rugged, industrial-grade power solution designed for heavy-duty trucks, construction equipment, and marine applications. This Single Pole, Single Throw (SPST) switch provides a simple and reliable On-Off function, engineered specifically to manage high-current loads up to 50 Amps.

Built for the Long Haul:

Constructed to withstand the harshest environments, the 34-226 features a robust die-cast body and a glass-filled nylon slide for superior mechanical strength. Whether it’s controlling auxiliary lighting, fans, or heavy machinery, this switch is designed to deliver consistent performance without the risk of overheating or contact failure.

Key Features & Construction:

• High-Capacity Rating: Handles up to 50 Amps at 12V DC (and 25 Amps at 24V DC), making it one of the most powerful toggle switches in its class.

• Rugged SPST Design: Two-position On-Off circuitry provides straightforward control for single-circuit accessories.

• Durable Black Handle: Equipped with a standard 1-inch black handle for a clean, professional appearance and a comfortable grip.

• Premium Internal Components: Features oversized copper contacts and a copper contact bridge for maximum conductivity and extended service life.

• Heavy-Duty Terminals: Includes two #8-32 screw terminals mounted on a heat-resistant laminated bakelite base to ensure secure, vibration-proof connections.

• Standard Fitment: Designed for a 15/32" diameter mounting hole, fitting most existing dashboard and control panel cutouts.

Technical Specifications:

• Part Number: 34-226 (also known as 34-226P / 34-226EP)

• Circuitry: SPST (Single Pole, Single Throw)

• Function: On - Off

• Rating: 50 Amps @ 12V DC; 25 Amps @ 24V DC

• Handle Type: 1" Standard Black Handle

• Terminals: (2) #8-32 Screw Terminals

• Construction: Die-Cast Body with Copper Contacts
