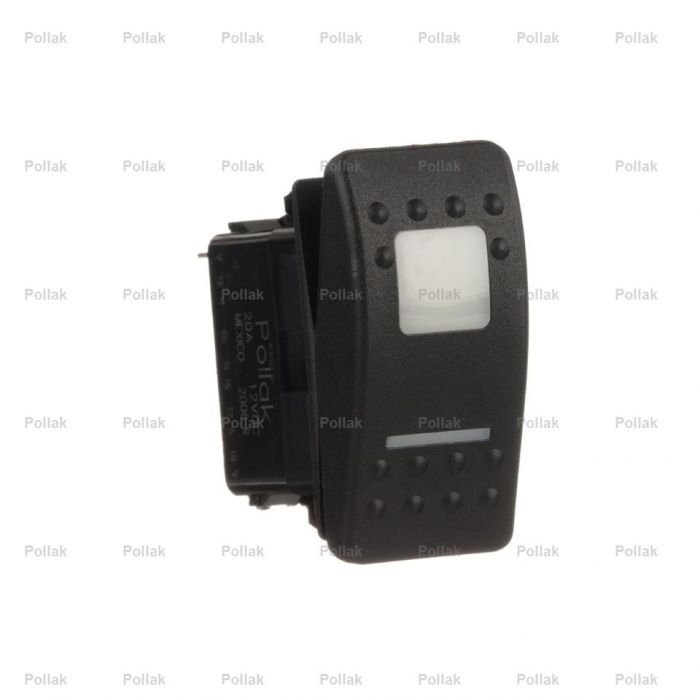

Pollak 34-231 Illuminated Momentary Rocker Switch – 20 Amp, SPST, (On)-Off, White Pilot Light

Precision Momentary Control with Integrated Status Illumination

The Pollak 34-231 Sealed Momentary Rocker Switch is the professional’s choice for reliable, temporary circuit activation in demanding environments. Designed for the heavy-duty trucking, agricultural, and marine industries, this Single Pole, Single Throw (SPST) switch features a (Momentary On)-Off function, ensuring power is only delivered while the switch is actively pressed.

Visual Clarity and Rugged Construction:

The 34-231 stands out with its crisp White Pilot Light, providing immediate visual feedback when the circuit is engaged. Built to Pollak’s exacting "Sealed Series" standards, this switch is engineered to resist moisture, dust, and vibration, making it perfect for dashboard or exterior control panel mounting.

Key Features & Benefits:

• Momentary Action: Ideal for applications requiring a temporary pulse of power, such as air horns, starter solenoids, windshield washers, or electric hatches.

• Sealed Design: Features a moisture and dust-resistant housing to ensure long-term performance in harsh weather or high-debris environments.

• White Pilot Illumination: The bright white lens lights up during operation, allowing for easy identification in low-light or nighttime conditions.

• High-Current Capacity: Robustly rated for 20 Amps at 12V DC, capable of handling most standard vehicle accessories.

• Quick Installation: The snap-in mounting design fits standard .830" x 1.450" panel cutouts, accommodating panel thicknesses from .093" to .187".

• Secure Connection: Equipped with four .250" brass blade terminals for fast, high-conductivity wiring.

Technical Specifications:

• Part Number: 34-231 (Pollak Aftermarket)

• Circuitry: SPST (Single Pole, Single Throw)

• Function: (Momentary On) - Off

• Illumination: White Pilot Light / White Lens

• Rating: 20 Amps @ 12V DC

• Terminals: (4) .250" Brass Blade Terminals

• Body Material: Black Nylon Housing and Bezel

• Cutout Dimensions: 0.830" x 1.450"
