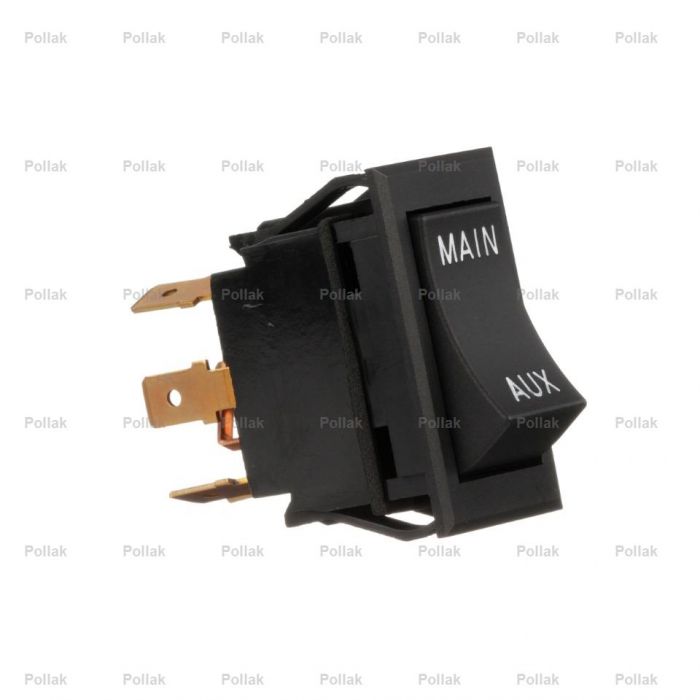

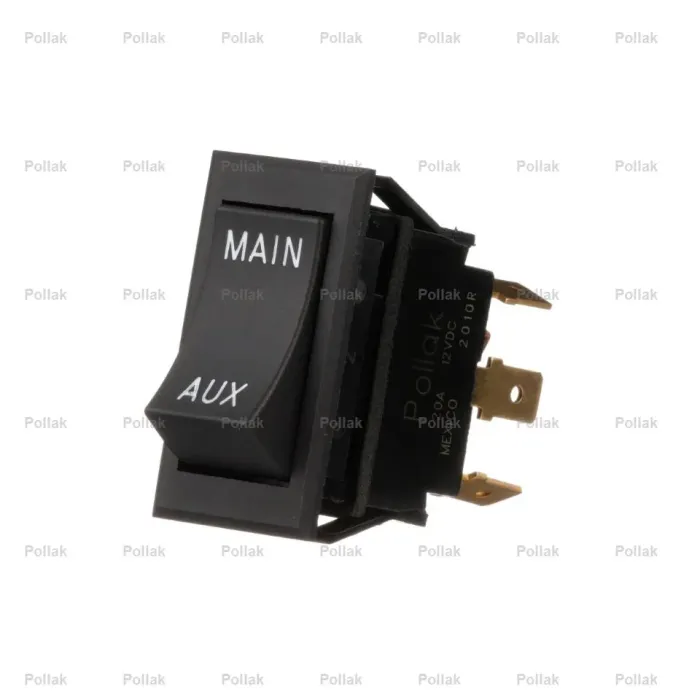

Pollak 34-359 Motor Reversing Rocker Switch | DPDT On-On | 20A 12VDC | 4-Screw Terminals | Black

Heavy-Duty Polarity Reversing Control

The Pollak 34-359 Rocker Switch is a high-performance Double Pole, Double Throw (DPDT) switch specifically engineered for motor reversing applications. With its On-On functionality, this switch is the ideal solution for controlling linear actuators, slide-outs, power windows, and dual-direction motors in trucks, RVs, and specialized industrial equipment.

Built for Rigorous Commercial Use

Designed to handle the high-vibration environments of the trucking and marine industries, the 34-359 features a rugged, impact-resistant black nylon housing and actuator. Unlike standard switches that may fail under heavy loads, this model is rated for 20 Amps at 12VDC, ensuring long-term reliability for your vehicle's essential systems.

Secure and Reliable Connections

Safety is paramount in electrical systems. The Pollak 34-359 is equipped with four brass screw terminals, providing a superior mechanical connection that prevents wire pull-out and resists corrosion. Its universal snap-in design allows for effortless installation into standard .830" x 1.450" dashboard cutouts.

Key Features:

• Motor Reversing Capability: DPDT On-On circuitry designed for changing motor direction.

• Industrial Strength: 20 Amp @ 12VDC rating for heavy-duty electrical demands.

• Vibration-Proof Termination: 4 brass screw terminals for a permanent, high-conductivity bond.

• Universal Snap-In Mounting: Fits standard panel thicknesses of .093", .125", and .187".

• Sleek Matte Finish: Professional black nylon actuator for a clean, factory look.

Specifications:

• Part Number: 34-359 (Retail Pack: 34-359P)

• Circuitry: DPDT (Double Pole-Double Throw)

• Function: On-On (Reversing)

• Rating: 20 Amps @ 12VDC

• Termination: 4 Brass Screw Terminals

• Panel Cutout: .830" x 1.450"

• Body Material: High-Impact Black Nylon
