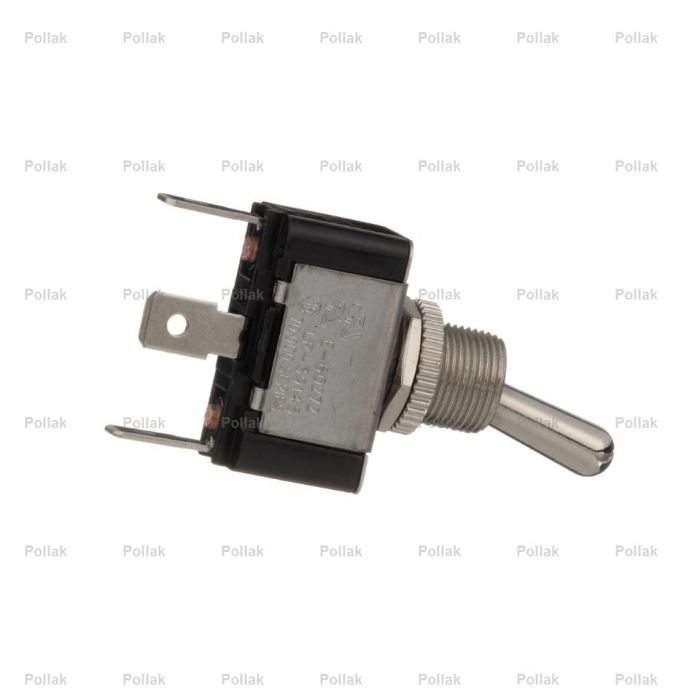

Pollak 34-572Q Toggle Switch On-On | SPDT 20A 12VDC | 3 Quick Connect Blade Terminals

The Pollak 34-572Q is a high-quality, medium-duty Single Pole, Double Throw (SPDT) toggle switch designed for fast and reliable electrical switching. This two-position "On-On" switch is the perfect choice for applications that require a constant connection to one of two different circuits, such as toggling between high/low beam headlights, dual fuel tanks, or two-speed motors.

The "Q" version of this classic switch features .250” Quick Connect blade terminals, allowing for a rapid, solderless installation that is ideal for modern wiring harnesses. Built with a rugged zinc die-cast housing and a standard chrome-plated handle, the 34-572Q is engineered to withstand the vibrations and environmental demands of heavy trucks, agricultural machinery, and marine vessels.

Key Features:

• Continuous Power Switching: Two-position On-On maintained action (no "Off" position) ensures one circuit is always energized.

• Rapid Installation: Features three .250” male blade (Quick Connect) terminals for secure, snap-on wiring.

• Heavy-Duty Rating: Rated for 20 Amps at 12VDC and 10 Amps at 24VDC, providing industrial-grade performance.

• Superior Build: Constructed with copper alloy conductors for maximum conductivity and a durable chrome-plated 11/16" handle.

• Universal Fit: Standard 15/32" mounting stem fits most existing dashboard and control panel holes.

Technical Specifications:

• Part Number: 34-572Q (Bulk) / 34-572QP (Retail Pack)

• Circuitry: SPDT (Single Pole, Double Throw)

• Switch Action: On - On (Maintained)

• Positions: 2-Position

• Rating: 20 Amps @ 12VDC / 10 Amps @ 24VDC

• Terminals: 3 Blade Terminals (.250" Quick Connect)

• Handle Type: Standard Toggle (Chrome Finish)

• Handle Length: 11/16 inch

• Mounting Stem: 15/32" Diameter, 15/32" Long
