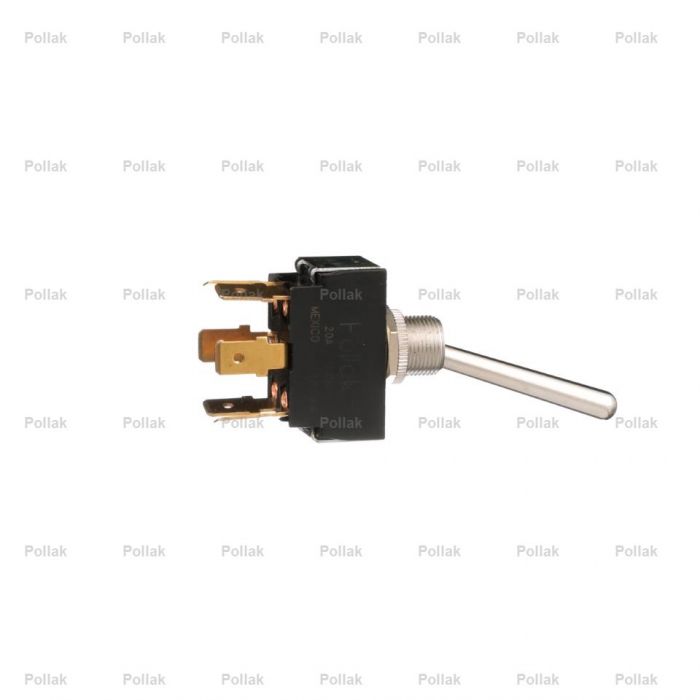

Pollak 34-577LQ Heavy-Duty Long Handle Toggle Switch – On-Off-On DPDT with 6 Quick-Connect Terminals (20 Amp)

Extended Reach & Fast Installation

The Pollak 34-577LQ is the ultimate solution for deep-dash installations or applications where high visibility and easy accessibility are required. Featuring an extended 1.5-inch long handle, this switch provides superior leverage and "easy-find" operation for drivers, even when wearing heavy work gloves. The 6 Quick-Connect (QC) blade terminals allow for a rapid, solderless installation, significantly reducing downtime during fleet maintenance or equipment upgrades.

Master Your Dual-Circuit Systems As a Double Pole Double Throw (DPDT) switch with an On-Off-On configuration, the 34-577LQ offers total control over two separate circuits. The three-position maintained action stays securely in place, allowing you to toggle between two different auxiliary functions (such as high/low lighting, interior/exterior fans, or dual-tank pumps) while maintaining a reliable center "Off" safety position.

Heavy-Duty OEM Quality Engineered for the demanding environments of commercial trucking and agricultural machinery, this switch features:

• Enhanced Reach: 1.5" long chrome-plated handle for improved accessibility.

• Rugged Body: Zinc die-cast housing with a glass-filled nylon slide for extreme durability.

• Superior Conductivity: Copper alloy conductors ensure maximum electrical flow with minimal resistive loss.

• Weather Resistance: Features a plastic coating and O-ring seal in the stem to protect internal contacts from moisture and road grime.

Key Specifications:

• Circuitry: On-Off-On (DPDT – 6 Terminals)

• Rating: 20 Amps @ 12VDC (Universal 6V-24V compatibility)

• Terminals: 6 x .250" (6.4mm) Quick-Connect Male Blades

• Mounting: Standard 15/32" threaded mounting stem (fits 1/2" holes)

• Included Hardware: 1 nickel-plated hex nut and 1 aluminum knurled face nut
