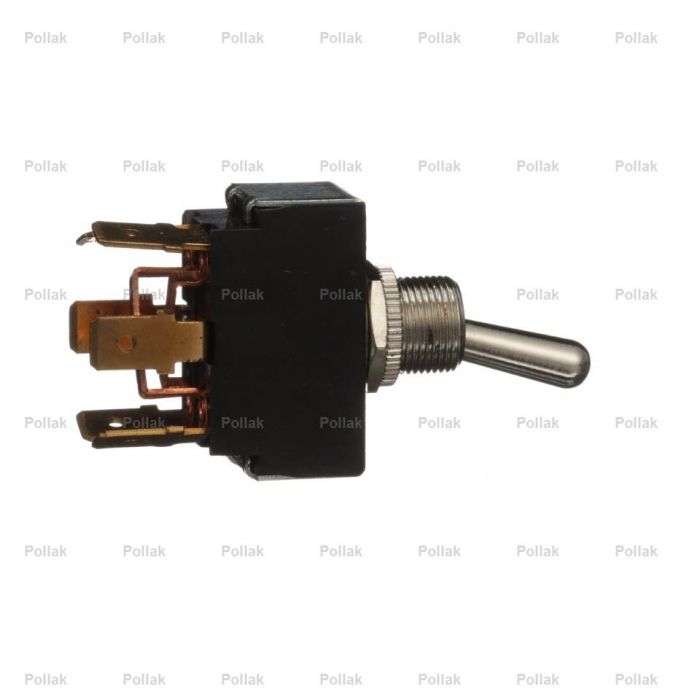

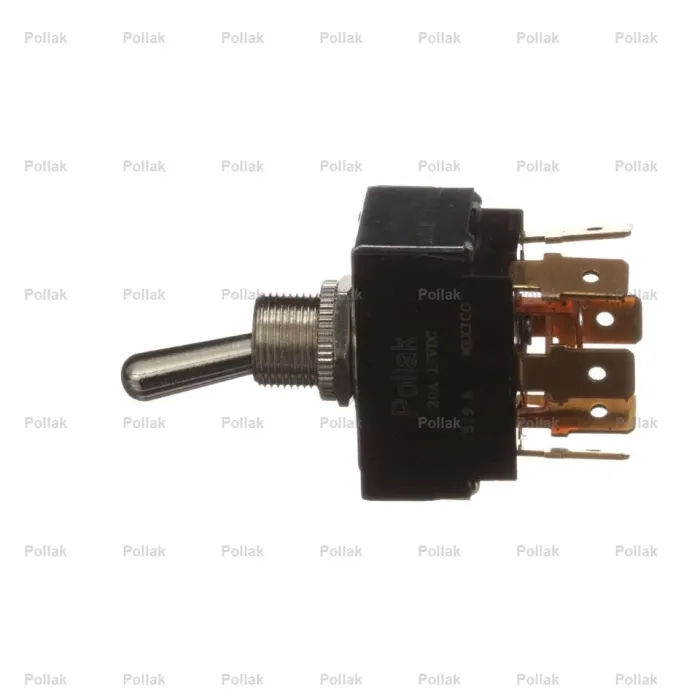

Pollak 34-592Q Toggle Switch – DPDT On-On, 6 QC Blade Terminals, Heavy-Duty Reversing Switch

Reliable Multi-Circuit Control

The Pollak 34-592Q Toggle Switch is a high-performance Double Pole, Double Throw (DPDT) solution built for rigorous automotive and commercial applications. As a staple in the heavy-duty truck and trailer industry, this switch provides the dependable performance required for complex wiring and motor-driven systems.

Efficient QC Terminal Design This model (34-592Q) is equipped with 6 Quick-Connect (QC) .250" blade terminals. Unlike screw-terminal models, the blade design allows for rapid installation and secure, vibration-resistant connections that are essential for vehicles frequently on the road or in industrial settings.

Key Features:

• DPDT On-On Circuitry: Designed to alternate between two separate circuits with no "Off" position, making it perfect for reversing and non-reversing motor applications.

• Heavy-Duty Rating: Rated for 20 Amps at 12V DC (compatible with 6V–24V DC systems), handling high-current loads with ease.

• Durable Build: Features a rugged zinc die-cast housing and a chrome-plated standard handle (11/16" length) for a professional look and long service life.

• Weather Resistance: Includes an O-ring seal in the stem to protect internal components from dust and moisture.

• Easy Mounting: Fits standard control panels with a 15/32" diameter mounting bushing.

Technical Specifications:

• Part Number: 34-592Q (Packaged as 34-592QP)

• Circuitry: DPDT On-On (2 Positions)

• Terminal Type: 6 Blade (.250" Quick Connect)

• Rating: 20 Amps @ 12V DC

• Handle Finish: Chrome

• Handle Length: 11/16" (Standard)

• Mounting Stem: 15/32" Diameter, 15/32" Length
