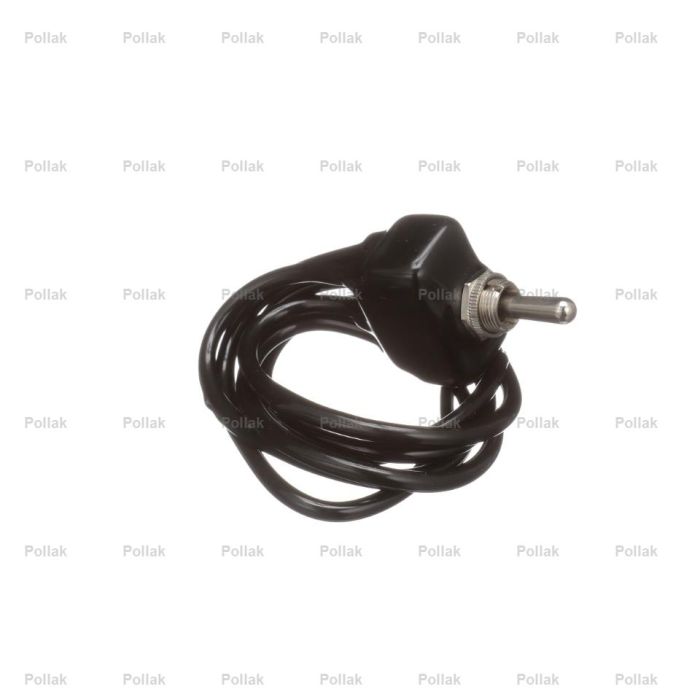

Pollak 34-654 Sealed Toggle Switch – DPDT On-Off-On Maintained – 6 Wire Leads, Weatherproof Plastisol

Ultimate Protection for Exterior Electrical Systems

The Pollak 34-654 is built to withstand the most punishing environments. Designed for exterior mounting on heavy-duty trucks, trailers, and marine equipment, this switch is fully encased in a black, weather-resistant plastisol (PVC) coating. This specialized seal encapsulates the switch body and terminal connections, providing a robust barrier against water, road salt, dust, and corrosive elements.

Double Pole, Double Throw (DPDT) Maintained Control

This switch offers DPDT On-Off-On maintained circuitry, meaning it locks into each of the three positions until manually moved. With its 6-wire lead configuration, it is the industry standard for controlling two separate circuits or performing motor reversing functions (such as dual-acting cylinders or lift gates) where a center "Off" position is required for safety and control.

Key Features:

• Fully Sealed Construction: Features an internal O-ring seal in the stem and a complete plastisol body coating to prevent water ingress in exposed locations.

• Pre-Wired for Speed: Equipped with six 8-inch, 14-gauge PVC-coated UL 1015 wire leads. This eliminates exposed terminals and provides a ready-to-splice solution for fast, secure installations.

• Heavy-Duty Rating: Rated at 20 Amps @ 12V DC, making it suitable for 6V through 24V DC automotive and industrial applications.

• Corrosion-Resistant Hardware: Includes a nickel-plated toggle and mounting hardware to ensure smooth operation and long service life in high-moisture environments.

• Copper Alloy Conductors: High-grade internal contacts ensure superior electrical conductivity and minimal voltage drop.

Technical Specifications:

• Part Number: 34-654 (also available as 34-654P)

• Circuitry: DPDT On-Off-On (Maintained)

• Rating: 20 Amps @ 12V DC

• Terminals: (6) 8" PVC Coated Wire Leads (14 AWG)

• Handle Type: Standard Chrome-Plated Toggle

• Mounting Stem: 15/32" Diameter, 15/32" Length

• Housing: Zinc Die-Cast with Weather-Resistant Plastisol Coating
