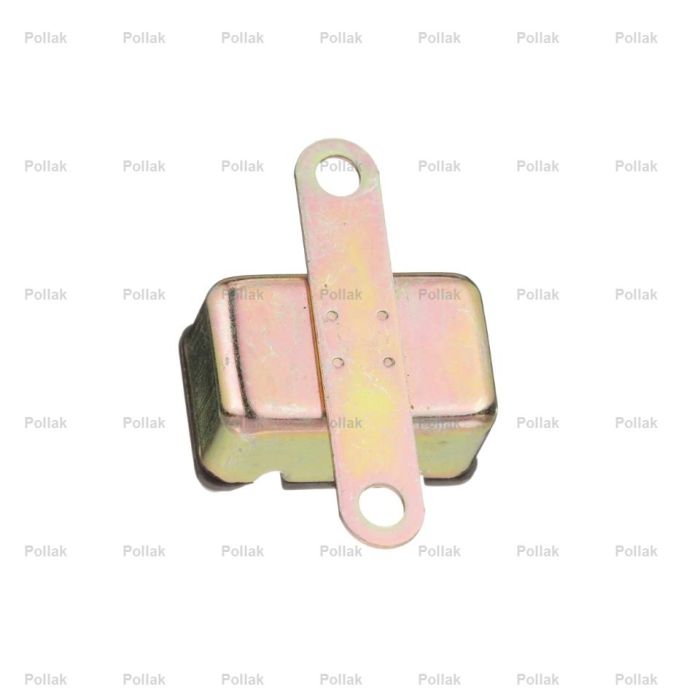

Pollak 54-225 25 Amp Type 1 Automatic Reset Circuit Breaker – Metal Housing with 90° Bracket

Optimize your vehicle's electrical safety with the Pollak 54-225 25 Amp Circuit Breaker. This heavy-duty, Type 1 "Automatic Reset" breaker is a professional-grade alternative to standard fuses, specifically designed for the demanding environments of commercial trucking, construction, and agricultural equipment.

The 54-225 comes equipped with a pre-installed 90-degree mounting bracket, allowing for easy, right-angle installation on firewalls, chassis rails, or inside accessory panels. Built with a rugged metal housing, it offers superior heat dissipation and impact resistance. As a Type 1 breaker, it automatically cycles and resets once an electrical overload is cleared, ensuring your critical auxiliary systems—like power window motors, wiper circuits, and specialized lighting—remain operational without the need for manual fuse replacement.

Key Features:

• Integrated 90° Mounting Bracket: Simplifies installation by allowing the breaker to be bolted directly to flat vertical or horizontal surfaces.

• Type 1 Auto-Reset Functionality: Automatically restores the circuit once the fault is corrected, providing continuous protection.

• 25 Amp Performance Rating: Ideal for mid-to-high draw 12V DC electrical accessories and motors.

• Heavy-Duty Metal Construction: Zinc-plated steel housing provides industrial-grade durability and excellent thermal management.

• Threaded Stud Terminals: Features (2) #10-32 studs for a secure, vibration-proof connection with ring terminals.

Technical Specifications:

• Part Number: 54-225 (Bulk: 54-225P)

• Amperage: 25 Amp

• Voltage: 12V DC

• Reset Type: Type 1 (Automatic)

• Mounting Style: 90° (Right-Angle) Bracket

• Housing Material: Metal (Zinc-Plated Steel)
