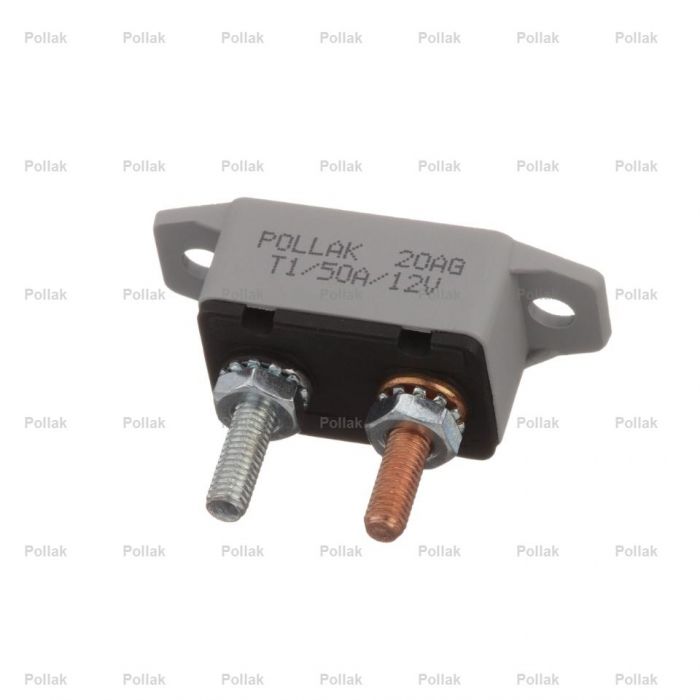

Pollak 54-550PL 50 Amp Type 1 Automatic Reset Circuit Breaker – Plastic Housing with Straight Bracket

Protect your vehicle’s highest-draw electrical systems with the industrial-strength Pollak 54-550PL 50 Amp Circuit Breaker. This Type 1 "Automatic Reset" breaker is a high-performance, reusable alternative to heavy-duty fuses, engineered to automatically restore power once an electrical overload or short circuit is resolved. Featuring a pre-installed straight mounting bracket, the 54-550PL is designed for a professional, flush-mount installation on firewalls, chassis rails, or exterior panels.

The 54-550PL is uniquely constructed with a high-impact, non-conductive plastic housing that is 100% rust-proof. This makes it the premier choice for salt-spreader trucks, marine vessels, and agricultural equipment where metal breakers are prone to rapid corrosion and failure. With a robust 50 Amp rating, it provides reliable primary protection for heavy-duty 12V DC loads, such as large hydraulic lift gates, winch motors, snow plow power feeds, and auxiliary battery banks.

Key Features:

• Integrated Straight Bracket: Designed for flush-mounting, providing a secure, low-profile attachment to flat surfaces.

• Type 1 Auto-Reset Functionality: Automatically cycles and resets after an overload, ensuring your equipment returns to service without manual intervention.

• Corrosion-Proof Plastic Body: Non-conductive and rust-resistant housing offers maximum durability in wet, salty, or chemically harsh environments.

• 50 Amp Heavy-Duty Protection: Rated for 12V DC systems; optimized for the highest-draw auxiliary motors and electrical equipment.

• Vibration-Resistant Terminals: Features (2) #10-32 threaded studs for a high-torque, permanent connection with heavy-gauge ring terminals.

Technical Specifications:

• Part Number: 54-550PL

• Amperage: 50 Amp

• Voltage: 12V DC

• Reset Type: Type 1 (Automatic)

• Mounting Style: Straight (Flush-Mount) Bracket

• Housing Material: High-Impact Plastic (Corrosion-Resistant)
