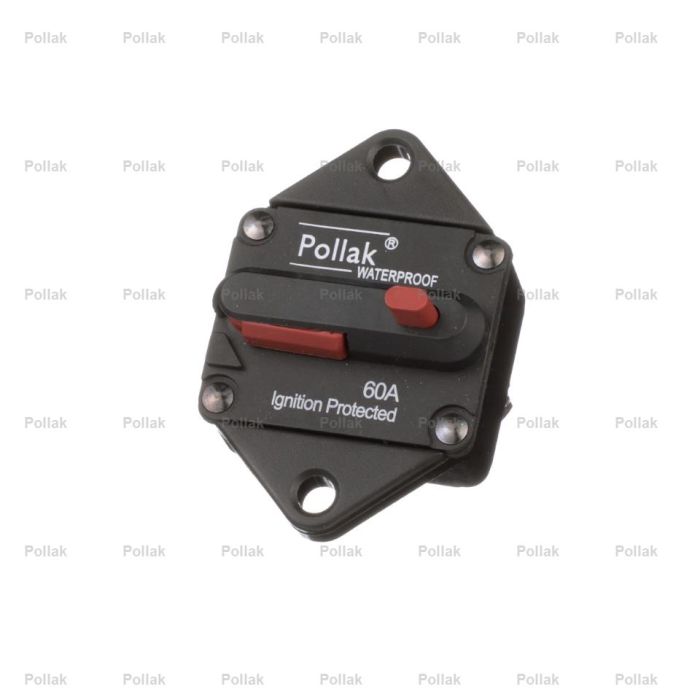

Pollak 54-880PL 60 Amp Type III Manual Reset Circuit Breaker – Surface Mount, Waterproof Plastic

Dependable Mid-Range Protection for DC Circuits
The Pollak 54-880PL is a high-quality 60 Amp Type III Thermal Circuit Breaker designed to provide essential overcurrent protection for medium-draw auxiliary circuits. Whether you are wiring up a new auxiliary lighting system, a small winch, or specialized truck body electronics, this 60A breaker ensures your system remains safe from electrical faults and surges.

Manual Reset Control & Visual Safety
The 54-880PL features a manual reset lever that provides an immediate, visible indication of a tripped circuit. As a "Type III" breaker, it also offers manual switchable functionality. This allows you to intentionally trip the breaker to "Off," effectively serving as a manual disconnect for maintenance or to isolate the circuit when the vehicle is not in use.

Rugged, All-Weather Housing
Don't let the compact size fool you. Built with a high-grade thermoset plastic housing (UL rated 94V0), this breaker is engineered to withstand extreme vibrations and high engine bay temperatures. It is fully sealed, splash-proof, and dust-proof, making it the perfect choice for mounting in exposed areas like chassis rails, battery boxes, or marine engine compartments.

Key Features:

• 60 Amp Rating: Ideal for mid-sized accessory circuits and auxiliary power.

• Type III Manual Reset: High-visibility trip indicator with manual "off" switch capability.

• Weatherproof Design: Sealed housing protects internal components from water and debris.

• Surface Mount Flange: Easy installation on any flat panel or surface with integrated mounting holes.

• SAE J1625 Compliant: Meets industry standards for heavy-duty ignition protection and performance.

Common Applications:

• Auxiliary LED light bars and work lights

• Small boat trolling motors and electronics

• RV slide-out motors and leveling jacks

• Trailer brake controllers and power feeds

Technical Specifications

• Part Number: 54-880PL (Interchangeable with 54-880PLP)

• Current Rating: 60 DC Amps

• Voltage Rating: 30 VDC Max

• Reset Type: Type III – Manual Reset (Switchable)

• Mounting Type: Surface Mount

• Housing Material: Thermoset Plastic (UL 94V0)

• Operating Temperature: -25°F to 180°F (-32°C to 82°C)

• Termination: 1/4-28 threaded studs (includes insulators)

• Certifications: SAE J1625 / Ignition Protected
