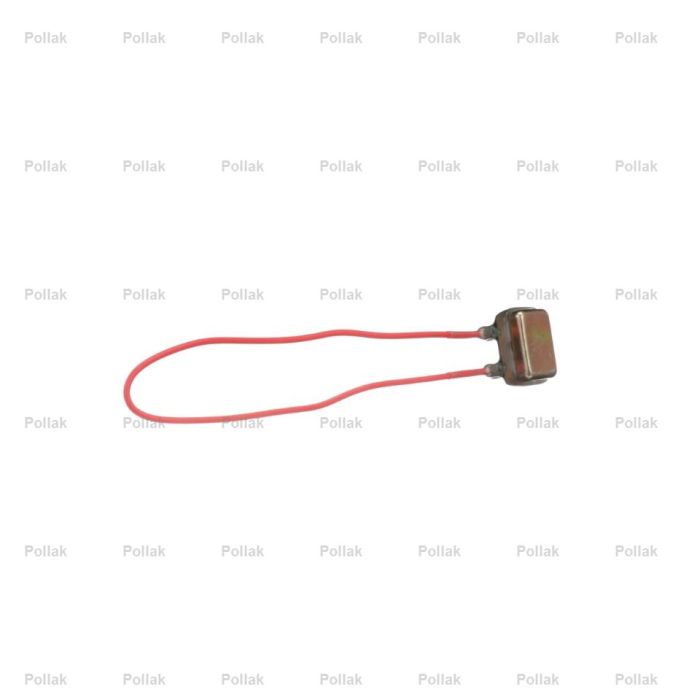

Pollak 54-930 Sealed 30 Amp Circuit Breaker – Type I Automatic Reset with 12-Inch Wire Loop

Heavy-Duty Circuit Protection for Harsh Environments
Protect your vehicle’s electrical infrastructure with the Pollak 54-930 30 Amp Sealed Circuit Breaker. Engineered for the rigorous demands of the trucking and towing industries, this Type I automatic reset breaker offers reliable protection against over-current conditions. Its sealed construction makes it the ideal choice for exterior or under-hood installations where exposure to the elements is unavoidable.

Designed for Exposed Applications
Unlike standard open-face breakers, the Pollak 54-930 is specifically built to withstand moisture, dust, and oil. The integrated 12-inch wire loop provides a versatile installation path—simply cut the loop to create two leads, allowing for a custom fit in tight spaces or complex wiring harnesses. This "sealed lead" design ensures that the internal components remain dry and corrosion-free, extending the life of your electrical system.

Key Features & Benefits:

• Automatic Reset (Type I): The breaker cycles continuously during an over-current event and automatically resets once the fault is cleared, ensuring minimal downtime for critical systems.

• Sealed Weatherproof Housing: Specifically designed for exposed applications to prevent failure due to road salt, humidity, and grime.

• 12-Inch Loop Wire: Offers maximum flexibility; the loop can be cut and stripped to your required length for easy splicing.

• Precision Engineering: Complies with SAE J553 standards for automotive circuit breakers, ensuring safety and performance.

• Versatile Applications: Perfect for trailer brake controllers, battery chargers, accessory lighting, trolling motors, and heavy-duty truck/RV circuits.

Technical Specifications

• Brand: Pollak (Stoneridge)

• Part Number: 54-930 (also referenced as 54-930P)

• Amperage: 30 Amps

• Voltage: 12V DC

• Reset Type: Type I Automatic Reset

• Mounting: In-line (no bracket)

• Wire Lead: 12-inch continuous loop

• Operating Temperature: -10°F to 150°F (-23°C to 65°C)

• Compliance: SAE J553
